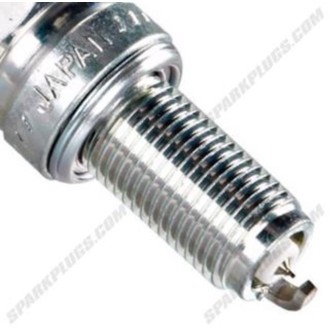

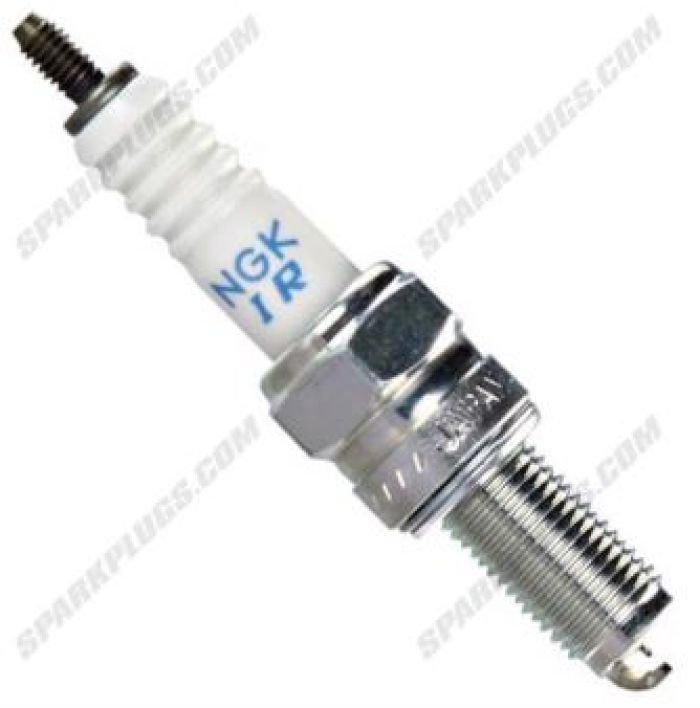

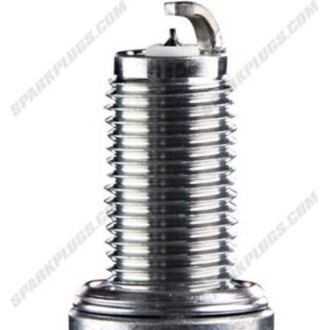

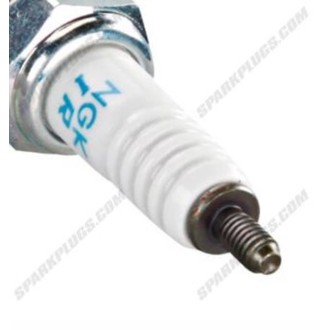

Laser Iridium Spark Plug Box of 4 (CR8EIA-9

Part Number 4286 (132648390)
Package contents: 1 Each per Box
Select vehicle for guaranteed fit
PERFORMANCE PART
$10.47

In stockShips by 18th Nov

Description

NGK single iridium plugs were designed specifically for the performance enthusiast. Fine wire center electrode ensures high durability and a consistently stable spark. Iridium alloy has an extremely high melting point, perfect for today's high-tech, high performance engines.

  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
  • Copper core aids in heat removal
  • Triple seals prevent leakage
  • Shell
  • Thread Diameter10mm
  • Thread Pitch1.0mm
  • Seat TypeGasket
  • Reach19mm (3/4")
  • Hex Size5/8" (16mm)
  • Terminal TypeThreaded Stud
  • Overall HeightISO
  • Gap.035" (0.9mm)
  • Center Electrode
  • MaterialIridium
  • TypeFine Wire
  • Size0.6mm
  • ProjectionNon-Projected
  • Ground Electrode
  • MaterialPlatinum
  • TypeStandard
  • ShapeTaper Cut
  • Quantity1
  • Specifications
  • ResistorYes
  • Resistor Value5k Ohm
  • Heat Range8
  • Torque SpecsCast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft.
  • Part Information
  • BrandNGK/NTK
  • Warranty60 Days
  • Longevity100k Miles

Fitment

This part fits the following vehicles.

Suzuki

  • 2012-2016 DL650A V-Strom ABS
  • 2012-2015 DL650A V-Strom ABS Adventure
  • 2015 DL650A V-Strom XT ABS
  • 2014-2015 SFV650

Triumph

  • 2016-2017 Speed Triple S

Features & benefits

  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
  • ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire iridium alloy center electrode provides consistent performance
  • RECOMMENDED USAGE: Best for vehicles with OE fine wire iridium alloy plugs
  • IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
  • Trivalent metal plating for superior anti-corrosion and anti-seizing properties
  • Copper core aids in heat removal
  • Triple seals prevent leakage

Specifications

Barcode 00087295042861
Center Electrode Core Material Copper
Center Electrode Design Fine Wire
Center Electrode Insulator Tip Projection 1.8 mm
Center Electrode Projection Non-Projected
Center Electrode Tip Material Iridium
Country Of Origin JP
Dimensions 14.4" x 10.2" x 1"
Electrical Terminal Type Stud
Grade Type Performance
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Taper Cut
Ground Electrode Tip Material Nickel
Hex Size 5/8" (16mm)
Insulator Height 48.8 mm
Insulator Material Ceramic
Manufacturer Heat Range 8
Metallurgy Single Iridium
Part Number CR8EIA-9
Pre-Gap Size 0.9 mm
Reach 19.0 mm
Resistance 5000.0 82
Resistor Type Yes
Seat Type Flat
Service Number CR8EIA-9
Short Style Spark Plug No
Skirt No
Skirt Length 0.0 mm
Street Legal Yes
Thread Size M10 - 1.0
Thread Type Standard Metric
Washer Type Crush
Washer(s) Included Yes
Weight 0.58 lbs
