NGK Authorized Dealer

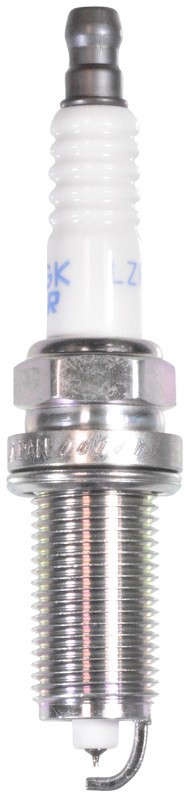

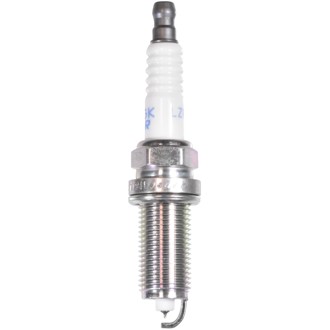

OE Series Laser Iridium Spark Plug: Fine Wire Tip, LZFR5CI-11

Part Number 92145 (132648121)

UPC: 87295921456

Package contents: 1 Each per Box

Select vehicle for guaranteed fit

$10.02

In stockShips by 29th Oct

Description

NGK Laser Iridium spark plugs offer the best combination of performance and longevity. Engineered specifically for OE applications, Laser Iridium spark plugs are tested to the highest standards to ensure quality and durability. Iridium tipped center electrode provides durability six times harder than platinum. NGKs high grade pure alumina ceramic and 98 percent pure copper core prevents the spark plug from overheating while providing reliable starts. Most Laser Iridium spark plugs feature a platinum pad on the ground electrode for even wear in distributorless ignition systems.

Fitment

This part fits the following vehicles.

2015-2017 Chrysler 200
2009-2012, 2014-2020 Chrysler 300
2008-2009 Chrysler Aspen
2009-2020 Dodge Challenger
2009-2020 Dodge Charger
2008-2010 Dodge Dakota
2013-2016 Dodge Dart
2008-2009, 2011-2020 Dodge Durango
2008-2010 Dodge Ram 1500
2009-2010 Dodge Ram 2500
2009 Dodge Ram 3500
2016-2018 Fiat 500X
2014-2020 Jeep Cherokee
2008-2010 Jeep Commander
2017-2020 Jeep Compass
2008-2020 Jeep Grand Cherokee
2015-2020 Jeep Renegade
2011-2020 Ram 1500
2019 1500 Ram Classic
2011-2018 Ram 2500
2011-2018 Ram 3500
2011 Ram Dakota
2015-2020 Ram ProMaster City

Features & benefits

Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
Trivalent metal plating for superior anti-corrosion and anti-seizing properties
RECOMMENDED USAGE: Best for vehicles with OE fine wire iridium alloy plugs
Copper core aids in heat removal
Triple seals prevent leakage
ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire iridium alloy center electrode provides consistent performance
TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges

Specifications

Center Electrode Core Material	Copper
Center Electrode Design	Fine Wire
Center Electrode Insulator Tip Projection	5.0 mm
Center Electrode Projection	Long Projection
Center Electrode Tip Material	Iridium
Country Of Origin	JP
Electrical Terminal Type	Non-Removable Nut
Grade Type	Performance
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Ground Electrode Quantity	1
Ground Electrode Tip Design	Standard
Ground Electrode Tip Material	Nickel
Hex Size	5/8" (16mm)
Insulator Height	50.5 mm
Insulator Material	Ceramic
Manufacturer Heat Range	5
Metallurgy	Single Iridium
Part Number	LZFR5CI-11
Pre-Gap Size	1.1 mm
Reach	26.5 mm
Resistance	5000.0 82
Resistor Type	Yes
Seat Type	Flat
Service Number	LZFR5CI-11
Short Style Spark Plug	No
Skirt	No
Skirt Length	0.0 mm
Street Legal	Yes
Thread Size	M14 - 1.25
Thread Type Standard	Metric
Washer Type	Crush
Washer(s) Included	Yes

Warranty

2 Months

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).
