Description

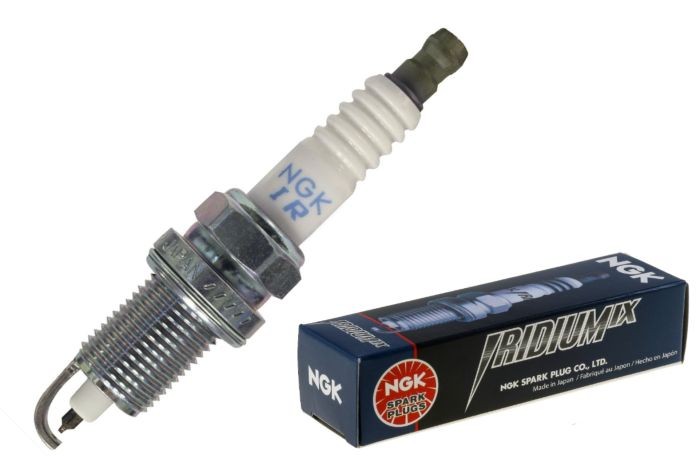

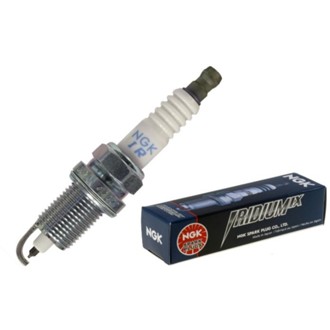

NGK Laser Iridium spark plugs offer the best combination of performance and longevity. Engineered specifically for OE applications, Laser Iridium spark plugs are tested to the highest standards to ensure quality and durability. Iridium tipped center electrode provides durability six times harder than platinum. NGKs high grade pure alumina ceramic and 98 percent pure copper core prevents the spark plug from overheating while providing reliable starts. Most Laser Iridium spark plugs feature a platinum pad on the ground electrode for even wear in distributorless ignition systems.
Features & benefits
- Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
- Trivalent metal plating for superior anti-corrosion and anti-seizing properties
- RECOMMENDED USAGE: Best for vehicles with OE fine wire iridium alloy plugs
- Copper core aids in heat removal
- Triple seals prevent leakage
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire iridium alloy center electrode provides consistent performance
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
Specifications
| Center Electrode Core Material | Copper |
|---|---|
| Center Electrode Design | Fine Wire |
| Center Electrode Insulator Tip Projection | 9.0 |
| Center Electrode Projection | Extra-Long Projection |
| Center Electrode Tip Material | Iridium |
| Electrical Terminal Type | Non-Removable Nut |
| Grade Type | Performance |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Ground Electrode Quantity | 1 |
| Ground Electrode Tip Design | Standard |
| Ground Electrode Tip Material | Platinum |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 50.5 |
| Insulator Material | Ceramic |
| Manufacturer Heat Range | 6 |
| Metallurgy | Iridium Platinum |
| Part Number | IZFR6J |
| Pre-Gap Size | 0.8 |
| Reach | 19.0 |
| Resistance | 5000.0 |
| Resistor Type | Yes |
| Seat Type | Flat |
| Service Number | IZFR6J |
| Short Style Spark Plug | No |
| Skirt | No |
| Skirt Length | 0.0 |
| Stock Number | 4462 |
| Street Legal | Yes |
| Thread Size | M14 - 1.25 |
| Thread Type Standard | Metric |
| Washer Type | Crush |
| Washer(s) Included | Yes |
Warranty
2 Months
Magnuson-Moss Warranty Act
Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).
California residents
WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
