NGK Authorized Dealer

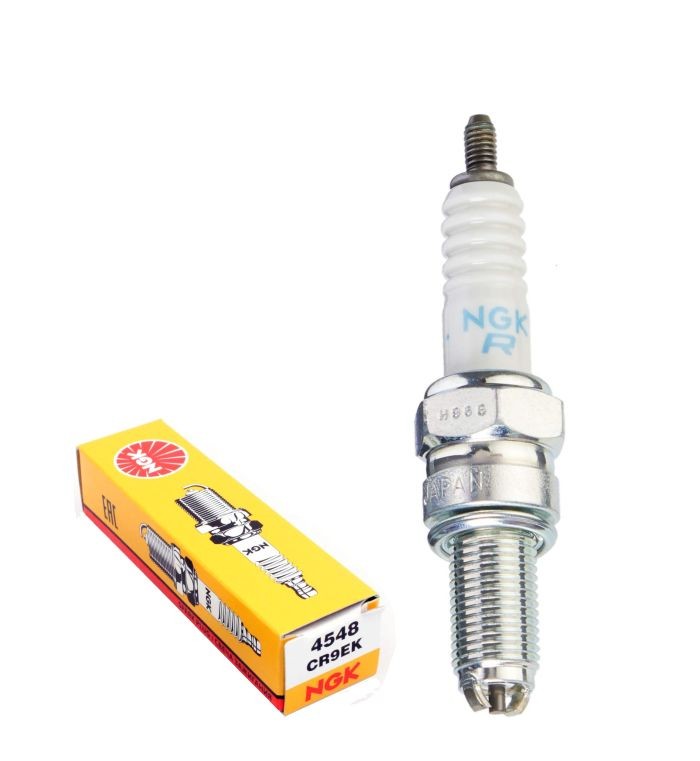

OE Series Standard Nickel Spark Plug: Conventional Tip, CR9EK

Part Number 4548 (132648180)

UPC: 87295045480

Package contents: 1 Each

Select vehicle for guaranteed fit

$10.17

In stockShips by 3rd Nov

Description

NGK Standard spark plugs (in the iconic NGK 'yellow box' packaging) are a proven OE cornerstone and technology customers have relied on for decades. Engineered specifically for OE applications, NGK Standard spark plugs provide OE quality nickel alloy reliable performance and design. NGK's legendary high grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance, while triple gasket sealing prevents combustion gas leakage. Solid 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges. Trivalent metal plating ensures superior anti-corrosion and anti-seizing properties.

Fitment

This part fits the following vehicles.

Cannondale

2002-2003 Blaze 440
2002 C440R
2002-2003 Cannibal 440
2002 E440
2002 Moto 440
2002-2003 Speed 440
2002 X440

Kawasaki

2003-2007 JT1200 STX-12F
2009-2010 JT1500 STX
2004-2016 JT1500 STX-15F
2007-2016 JT1500 Ultra LX
2005-2006 Z750S
2016 ZR800 Z800 ABS
1999-2000 ZRX1100
2001-2005 ZRX1200
1995-1997 ZX1100 GPZ
1996 ZX1100 GPZ ABS
1995-1997 ZX1100 Ninja ZX-11
2001-2002 ZX1200 Ninja ZX-12R
1994-2003 ZX900 Ninja ZX-9R

KTM

2013 250 SX-F

Suzuki

1994-1999 DR350
1994-1999 DR350SE
1996-2003 GSF600S Bandit
1996-2006 GSX600F Katana
1999-2006 GSX750F Katana
1992-1993 GSX-R600
1993 GSX-R750
1998-2003 TL1000R
1997-2001 TL1000S

Triumph

2003-2004 Daytona 600
2005 Daytona 650
2006-2014, 2016 Daytona 675
2015 Daytona 675 ABS
2011-2014, 2016-2017 Daytona 675 R
2015 Daytona 675 R ABS
2002-2004 Daytona 955i
2002-2005 Speed Four
2002-2004, 2007-2008 Speed Triple
2002-2004 Sprint RS
2002-2010 Sprint ST
2008-2013 Street Triple 675
2014-2016 Street Triple ABS
2009-2013, 2017 Street Triple R
2014-2016 Street Triple R ABS
2007-2010 Tiger
2011 Tiger 800
2011-2014 Tiger 800 ABS
2011, 2014-2016 Tiger 800 XC
2016-2017 Tiger 800 XCA
2011-2013 Tiger 800 XC ABS
2015-2017 Tiger 800 XCx
2015-2017 Tiger 800 XR
2016-2017 Tiger 800 XRT
2015-2017 Tiger 800 XRx
2000-2003 TT600

Yamaha

2007-2009 FZS1000 FZ1
2004-2009 FZS600 FZ6
2008-2011, 2014-2019 WR250R
2008-2011 WR250X
2004-2008 YZF-R1
2006 YZF-R1 LE

Features & benefits

TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
Trivalent metal plating for superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent flashover
Copper core aids in heat removal
Triple seals prevent leakage
RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance

Specifications

Center Electrode Core Material	Copper
Center Electrode Design	Standard
Center Electrode Insulator Tip Projection	2.5 mm
Center Electrode Projection	Mid Projection
Center Electrode Tip Material	Nickel
Color	Nickel
Country Of Origin	JP
Electrical Terminal Type	Stud
Grade Type	Standard Replacement
Ground Configuration	Multi-Ground Electrode
Ground Electrode Core Material	Nickel
Ground Electrode Quantity	2
Ground Electrode Tip Design	Standard
Ground Electrode Tip Material	Nickel
Hex Size	5/8" (16mm)
Insulator Height	48.8 mm
Insulator Material	Ceramic
Manufacturer Heat Range	9
Metallurgy	Copper
Part Number	CR9EK
Pre-Gap Size	0.7 mm
Reach	19.0 mm
Resistance	5000.0 82
Resistor Type	Yes
Seat Type	Flat
Service Number	CR9EK
Short Style Spark Plug	No
Skirt	No
Skirt Length	0.0 mm
Street Legal	Yes
Thread Size	M10 - 1.0
Thread Type Standard	Metric
Washer Type	Crush
Washer(s) Included	Yes
