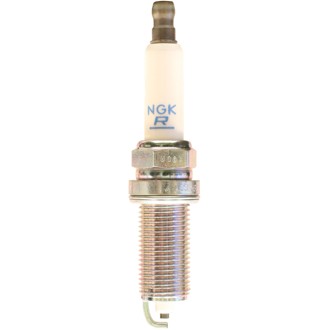

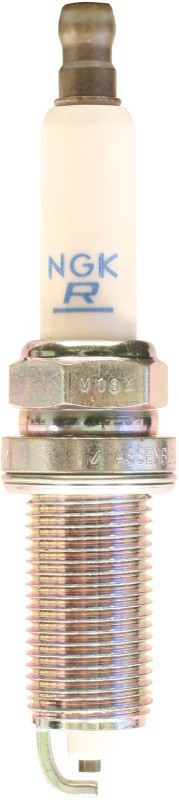

OE Series Standard Nickel Spark Plug: Conventional Tip, LZFR5C-11

Part Number 92174 (132648246)

UPC: 87295921746

Package contents: 1 Each per Box

Select vehicle for guaranteed fit

$7.77

In stockShips by 29th Oct

Description

NGK Standard spark plugs (in the iconic NGK 'yellow box' packaging) are a proven OE cornerstone and technology customers have relied on for decades. Engineered specifically for OE applications, NGK Standard spark plugs provide OE quality nickel alloy reliable performance and design. NGK's legendary high grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance, while triple gasket sealing prevents combustion gas leakage. Solid 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges. Trivalent metal plating ensures superior anti-corrosion and anti-seizing properties.

Fitment

This part fits the following vehicles.

2015-2017 Chrysler 200
2009-2012, 2014-2017 Chrysler 300
2008-2009 Chrysler Aspen
2009-2017 Dodge Challenger
2009-2017 Dodge Charger
2008-2010 Dodge Dakota
2013-2016 Dodge Dart
2008-2009, 2011-2017 Dodge Durango
2008-2010 Dodge Ram 1500
2009-2010 Dodge Ram 2500
2009 Dodge Ram 3500
2016-2017 Fiat 500X
2014-2017 Jeep Cherokee
2008-2010 Jeep Commander
2008-2017 Jeep Grand Cherokee
2015-2017 Jeep Renegade
2011-2017 Ram 1500
2011-2017 Ram 2500
2011-2017 Ram 3500
2011 Ram Dakota
2015-2017 Ram ProMaster City

Features & benefits

Triple seals prevent leakage
TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
Trivalent metal plating for superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent flashover
Copper core aids in heat removal
ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance

Specifications

Center Electrode Core Material	Copper
Center Electrode Design	Standard
Center Electrode Insulator Tip Projection	5.0 mm
Center Electrode Projection	Long Projection
Center Electrode Tip Material	Nickel
Color	Nickel
Country Of Origin	USA
Electrical Terminal Type	Non-Removable Nut
Grade Type	Standard Replacement
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Ground Electrode Quantity	1
Ground Electrode Tip Design	Standard
Ground Electrode Tip Material	Nickel
Hex Size	5/8" (16mm)
Insulator Height	50.5 mm
Insulator Material	Ceramic
Manufacturer Heat Range	5
Metallurgy	Copper
Part Number	LZFR5C-11
Pre-Gap Size	1.1 mm
Reach	26.5 mm
Resistance	5000.0 82
Resistor Type	Yes
Seat Type	Flat
Service Number	LZFR5C-11
Short Style Spark Plug	No
Skirt	No
Skirt Length	0.0 mm
Street Legal	Yes
Thread Size	M14 - 1.25
Thread Type Standard	Metric
Washer Type	Crush
Washer(s) Included	Yes

Warranty

2 Months

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).
