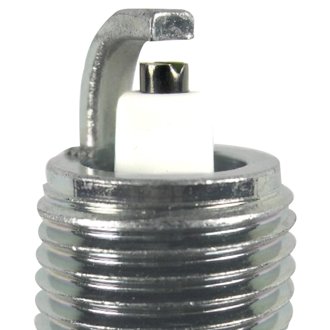

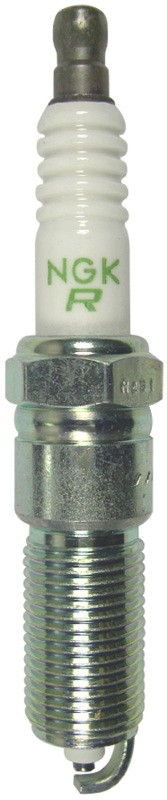

OE Series V-Power Nickel Spark Plug: V-Groove Tip, LZTR4A-11

Part Number 5306 (132648181)

UPC: 87295153062

Package contents: 1 Each per Box

Select vehicle for guaranteed fit

$1.79

In stockShips by 29th Oct

Description

NGK V-Power spark plugs offer reliable performance and improved ignitability over standard nickel plugs. Engineered specifically for OE applications, the special V-cut nickel alloy center electrode and concave ground electrode of NGK's V-Power spark plug increases ignitability providing quicker starts and smoother idle. NGK's legendary high grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance. Trivalent metal plating ensures superior anti-corrosion and anti-seizing properties.

Fitment

This part fits the following vehicles.

2005-2008 Chrysler 300
2007-2008 Chrysler Aspen
2001-2010 Chrysler PT Cruiser
2001-2006 Chrysler Sebring
2001-2003 Chrysler Voyager
2001-2007 Dodge Caravan
2006-2008 Dodge Charger
2004-2008 Dodge Durango
2005-2008 Dodge Magnum
2003-2008 Dodge Ram 1500
2003-2008 Dodge Ram 2500
2003-2008 Dodge Ram 3500
2001-2006 Dodge Stratus
2006-2008 Jeep Commander
2005-2008 Jeep Grand Cherokee
2002-2005 Jeep Liberty
2003-2006 Jeep Wrangler

Features & benefits

TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
Trivalent metal plating for superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent flashover
Copper core aids in heat removal
Triple seals prevent leakage
RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode with V-groove provides consistent performance
NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads

Specifications

Center Electrode Core Material	Copper
Center Electrode Design	Standard
Center Electrode Insulator Tip Projection	5.0 mm
Center Electrode Projection	Long Projection
Center Electrode Tip Material	Nickel
Color	Nickel
Country Of Origin	USA
Electrical Terminal Type	Non-Removable Nut
Grade Type	Standard Replacement
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Ground Electrode Quantity	1
Ground Electrode Tip Design	Standard
Ground Electrode Tip Material	Nickel
Hex Size	5/8" (16mm)
Insulator Height	56.0 mm
Insulator Material	Ceramic
Manufacturer Heat Range	4
Metallurgy	Copper
Part Number	LZTR4A-11
Pre-Gap Size	1.1 mm
Reach	25.0 mm
Resistance	5000.0 82
Resistor Type	Yes
Seat Type	Tapered
Service Number	LZTR4A-11
Short Style Spark Plug	No
Skirt	No
Skirt Length	0.0 mm
Street Legal	Yes
Thread Size	M14 - 1.25
Thread Type Standard	Metric
Washer(s) Included	No
