NGK Authorized Dealer

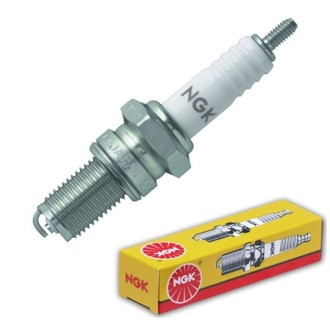

OE Series Standard Nickel Spark Plug: Conventional Tip, D9EA

Part Number 2420 (132648252)

UPC: 87295024201

Package contents: 1 Each

Select vehicle for guaranteed fit

$1.82

In stockShips by 29th Oct

Description

NGK Standard spark plugs (in the iconic NGK 'yellow box' packaging) are a proven OE cornerstone and technology customers have relied on for decades. Engineered specifically for OE applications, NGK Standard spark plugs provide OE quality nickel alloy reliable performance and design. NGK's legendary high grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance, while triple gasket sealing prevents combustion gas leakage. Solid 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges. Trivalent metal plating ensures superior anti-corrosion and anti-seizing properties.

Fitment

This part fits the following vehicles.

1980-1981 Honda CB900C Custom
1981 Honda CB900F Super Sport
1985-1986, 1988-1990 Kawasaki EN450A 454 LTD
1990-1996 Kawasaki EN500 Vulcan 500
1994-1996 Kawasaki EX500 Ninja 500
1982 Kawasaki KZ305B CSR Belt
1987-1988 Kawasaki KZ305B LTD
1981-1982 Kawasaki KZ305 CSR
1986-1987 Kawasaki ZL600 Eliminator
1991-1992 Kawasaki ZR750C Zephyr
1985-1997 Kawasaki ZX600 Ninja 600R
1990-1997 Kawasaki ZX600 Ninja ZX-6
1995-1997 Kawasaki ZX600 Ninja ZX-6R
1980-1981 Suzuki GS250T
1982-1983 Suzuki GS300L
1983-1986 Suzuki GS550E
1983-1986 Suzuki GS550ES
1983-1986 Suzuki GS550L
1986-1987 Suzuki GSX-R750
1983 Suzuki XN85 Turbo
1973-1974 Yamaha TX500

Features & benefits

TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
Trivalent metal plating for superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent flashover
Copper core aids in heat removal
Triple seals prevent leakage
COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance

Specifications

Center Electrode Core Material	Copper
Center Electrode Design	Standard
Center Electrode Insulator Tip Projection	1.6 mm
Center Electrode Projection	Non-Projected
Center Electrode Tip Material	Nickel
Color	Nickel
Country Of Origin	JP
Electrical Terminal Type	Stud
Grade Type	Standard Replacement
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Ground Electrode Quantity	1
Ground Electrode Tip Design	Standard
Ground Electrode Tip Material	Nickel
Hex Size	18mm
Insulator Height	50.0 mm
Insulator Material	Ceramic
Manufacturer Heat Range	9
Metallurgy	Copper
Part Number	D9EA
Pre-Gap Size	0.7 mm
Reach	19.0 mm
Resistance	0.0 82
Resistor Type	No
Seat Type	Flat
Service Number	D9EA
Short Style Spark Plug	No
Skirt	No
Skirt Length	0.0 mm
Street Legal	Yes
Thread Size	M12 - 1.25
Thread Type Standard	Metric
Washer Type	Crush
Washer(s) Included	Yes
