NGK Authorized Dealer

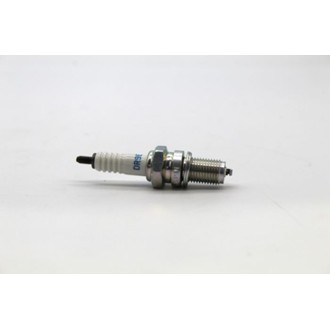

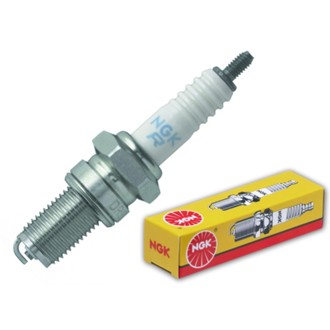

Standard Spark Plug (DR9EA

Part Number 3437 (132648419)
Package contents: 1 Each per Box
Select vehicle for guaranteed fit
Color
Tan
$2.76

In stockShips by 18th Nov

Description

NGK Standard spark plugs (in the iconic NGK 'yellow box' packaging) are a proven OE cornerstone and technology customers have relied on for decades. Engineered specifically for OE applications, NGK Standard spark plugs provide OE quality nickel alloy reliable performance and design. NGK's legendary high grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance, while triple gasket sealing prevents combustion gas leakage. Solid 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges. Trivalent metal plating ensures superior anti-corrosion and anti-seizing properties.

Fitment

This part fits the following vehicles.

Kawasaki

  • 1996-2009 EN500C Vulcan 500 LTD
  • 1997-2009 EX500 Ninja 500R
  • 1990-1991 ZR550 Zephyr

KTM

  • 2003-2004 660 Rally

Moto Guzzi

  • 1998 V10 Centauro GT
  • 1998 V10 Centauro Sport

Features & benefits

  • ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
  • RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
  • Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
  • Trivalent metal plating for superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Copper core aids in heat removal
  • Triple seals prevent leakage

Specifications

Barcode 00087295034378
Center Electrode Core Material Copper
Center Electrode Design Standard
Center Electrode Insulator Tip Projection 1.6 mm
Center Electrode Projection Non-Projected
Center Electrode Tip Material Nickel
Color Tan
Country Of Origin JP
Dimensions 4.4" x 3.2" x 1.8"
Electrical Terminal Type Stud
Grade Type Standard Replacement
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Standard
Ground Electrode Tip Material Nickel
Hex Size 18mm
Insulator Height 50.0 mm
Insulator Material Ceramic
Manufacturer Heat Range 9
Metallurgy Copper
Part Number DR9EA
Pre-Gap Size 0.7 mm
Reach 19.0 mm
Resistance 5000.0 82
Resistor Type Yes
Seat Type Flat
Service Number DR9EA
Short Style Spark Plug No
Skirt No
Skirt Length 0.0 mm
Street Legal Yes
Thread Size M12 - 1.25
Thread Type Standard Metric
Washer Type Crush
Washer(s) Included Yes
Weight 1 lbs

Warranty

2 Months

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).
