NGK Authorized Dealer

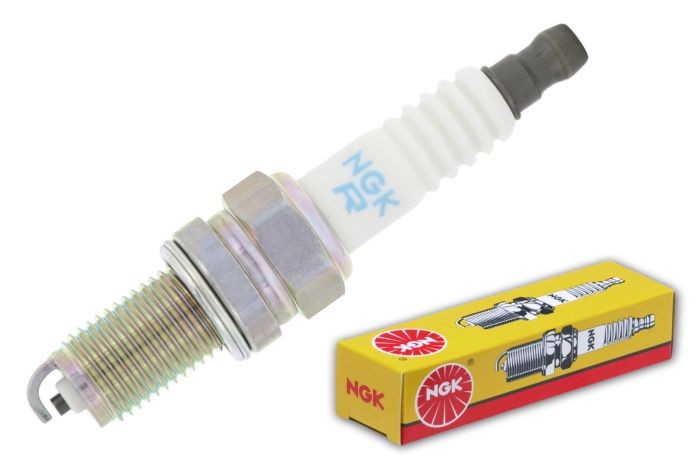

OE Series Standard Nickel Spark Plug: Conventional Tip, DCPR6E

Part Number 3481 (132648427)

UPC: 87295034811

Package contents: 1 Each

Select vehicle for guaranteed fit

$5.22

In stockShips by 29th Oct

Description

NGK Standard spark plugs (in the iconic NGK 'yellow box' packaging) are a proven OE cornerstone and technology customers have relied on for decades. Engineered specifically for OE applications, NGK Standard spark plugs provide OE quality nickel alloy reliable performance and design. NGK's legendary high grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance, while triple gasket sealing prevents combustion gas leakage. Solid 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges. Trivalent metal plating ensures superior anti-corrosion and anti-seizing properties.

Fitment

This part fits the following vehicles.

1991-1993 BMW M5
2010, 2012-2016 Honda VT1300CRA Stateline ABS
2010-2016 Honda VT1300CR Stateline
2010, 2012-2014 Honda VT1300CSA Sabre ABS
2010-2014 Honda VT1300CS Sabre
2011-2015 Honda VT1300CTA Interstate ABS
2010-2015 Honda VT1300CT Interstate
2012-2016, 2018-2019 Honda VT13CXA Fury ABS
2010-2020 Honda VT13CX Fury
2004-2009 Honda VTX1300C
2005-2009 Honda VTX1300R
2003-2007 Honda VTX1300S
2008-2009 Honda VTX1300T
2009-2013 Victory Arlen Ness Vision
2013-2014 Victory Boardwalk
2011-2012 Victory Cory Ness Cross Country
2013 Victory Cory Ness Cross Country Tour
2010-2017 Victory Cross Country
2014-2016 Victory Cross Country 8-Ball
2012-2017 Victory Cross Country Tour
2010-2012 Victory Cross Roads
2013-2014 Victory Cross Roads Classic
2012 Victory Cross Roads Classic LE
2015-2017 Victory Gunner
2008-2011 Victory Hammer
2010-2015 Victory Hammer 8-Ball
2009-2012, 2016-2017 Victory Hammer S
2012-2017 Victory High-Ball
2013-2014 Victory Judge
2008-2012 Victory Kingpin
2008-2011 Victory Kingpin 8-Ball
2009 Victory Kingpin Low
2008-2009 Victory Kingpin Tour
2015-2017 Victory Magnum
2017 Victory Magnum X-1
2016 Victory Magnum X-1 Stealth Edition
2014 Victory Ness Cross Country
1998-2001 Victory V92C Standard Cruiser
2001 Victory V92C Standard Cruiser Deluxe
2000 Victory V92C Standard Cruiser Special Edition
2000-2001 Victory V92SC Sport Cruiser
2008-2012, 2016-2017 Victory Vegas
2008-2017 Victory Vegas 8-Ball
2008-2013 Victory Vegas Jackpot
2008-2009 Victory Vegas Low
2016-2017 Victory Vision
2010-2011 Victory Vision 8-Ball
2008-2009 Victory Vision Street
2008-2015 Victory Vision Tour
2013 Victory Zach Ness Cross Country
2011-2012 Victory Zach Ness Vegas

Features & benefits

TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
Trivalent metal plating for superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent flashover
Copper core aids in heat removal
Triple seals prevent leakage
ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges

Specifications

Center Electrode Core Material	Copper
Center Electrode Design	Standard
Center Electrode Insulator Tip Projection	3.0 mm
Center Electrode Projection	Mid Projection
Center Electrode Tip Material	Nickel
Color	Nickel
Country Of Origin	JP
Electrical Terminal Type	Non-Removable Nut
Grade Type	Standard Replacement
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Ground Electrode Quantity	1
Ground Electrode Tip Design	Standard
Ground Electrode Tip Material	Nickel
Hex Size	5/8" (16mm)
Insulator Height	51.0 mm
Insulator Material	Ceramic
Manufacturer Heat Range	6
Metallurgy	Copper
Part Number	DCPR6E
Pre-Gap Size	0.9 mm
Reach	19.0 mm
Resistance	5000.0 82
Resistor Type	Yes
Seat Type	Flat
Service Number	DCPR6E
Short Style Spark Plug	No
Skirt	No
Skirt Length	0.0 mm
Street Legal	Yes
Thread Size	M12 - 1.25
Thread Type Standard	Metric
Washer Type	Crush
Washer(s) Included	Yes

Warranty

2 Months

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).

California residents

WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
