COMP Cams

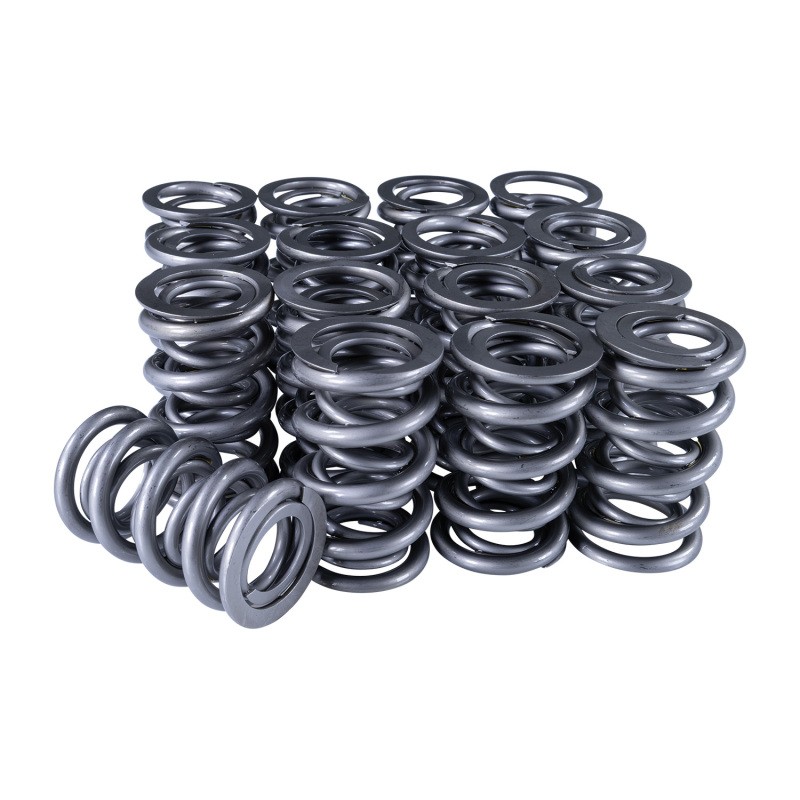

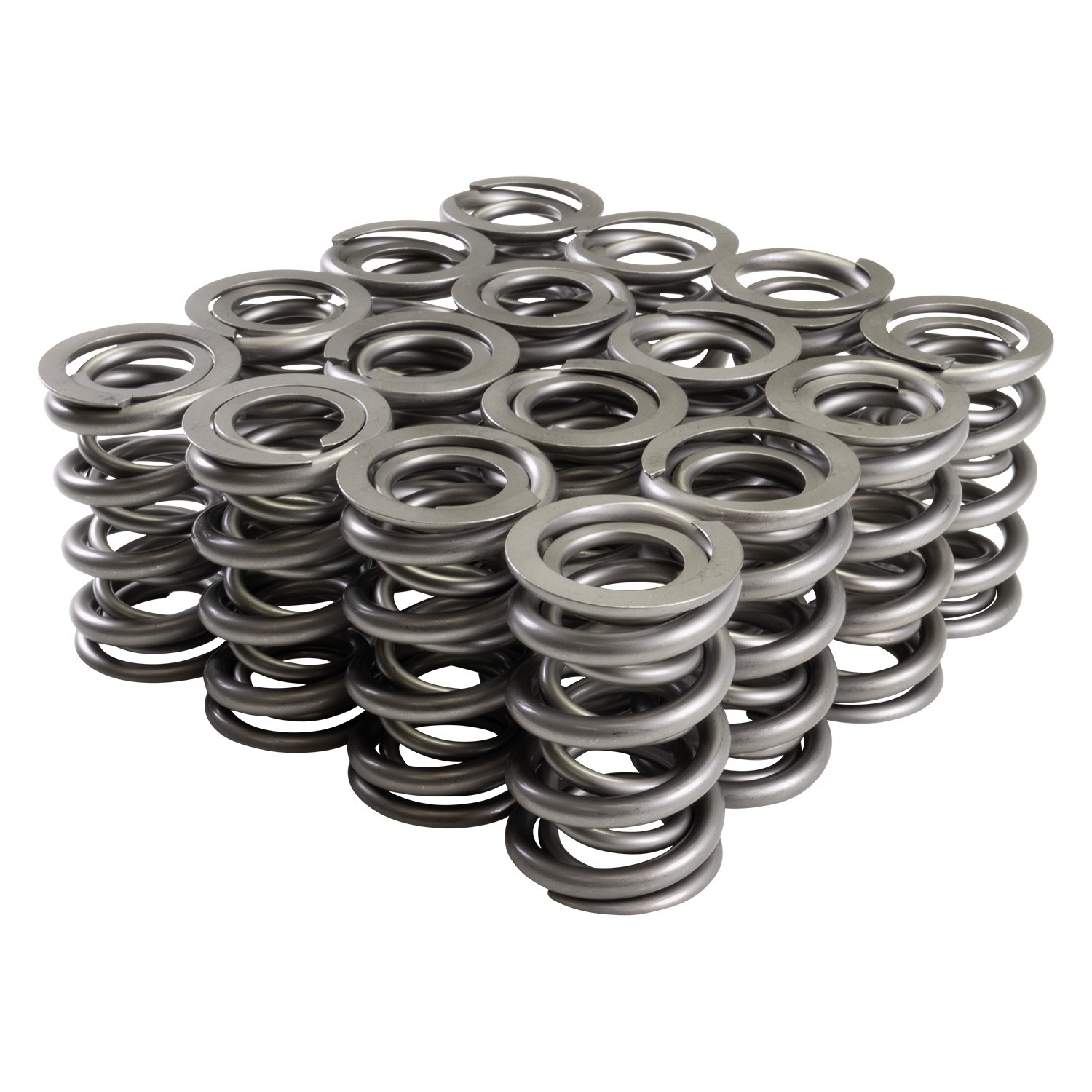

Dual Valve Springs 1.546 in. OD / 1.950 in. IH / .800 in. Lift - Set

Part Number 26944-16 (133009551)

Package contents: 1 Set per Box

Color

$774.21

In stockShips by 17th Nov

Description

COMP Cams' new 26944 dual valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire processing, including superfinishing, they redefine reliability and consistency in the performance automotive aftermarket. The 26944 is purposed for endurance race solid roller applications, with up to .800” lift at an installed height of 1.950”. They fit cylinder heads with at least a 1.546" spring pocket. Boasting an open load of over 750 pounds, these valve springs are designed for endurance applications and optimized with newer lobe profiles in mind to achieve higher RPM and higher lift. Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the track with COMP Cams valve springs.

Specifications

Barcode	00036584000983
C.A.R.B. E.O. Number	N/A
C.A.R.B. Exempt For On-Road Vehicles?	Yes
C.A.R.B. Exemption Reason	No impact on pollution output of vehicle.
Coil Bind Height	1.100 in
Country Of Origin	USA
Damper Spring Included	No
Dimensions	13.5" x 3.6" x 2.8"
Finish	Superfinish
Inner Spring Inside Diameter	0.788 in
Inner Spring Outside Diameter	1.1 in
Installed Height	1.950 in
Number Of Springs	16
Number Of Springs Per Valve	2
Open Pressure	760 ps
Outer Spring Outside Diameter	1.546 in
Recommended Max Lift	.800 in
Seat Height	2 in
Seat Pressure	250 ps
Spring Load	250 lb
Spring Open Height	1.15 in
Spring Rate	638 ppi
Spring Type	Dual Spring
Weight	6 lbs

Warranty

12 Months
