Ford 5.0L Coyote Valve Spring Kit O.D. .959in

Description

Ford Coyote and Boss 5.0L engines

Max Lift Seat Load Open Load Rate Coil Bind Outer Diameter Inner Diameter

.550" 93 lbs @ 1.57" 198 lbs @ 1.02" 191lbs/in .952" Top .959" / Bottom 1.061" Top .636" / Bottom .738"

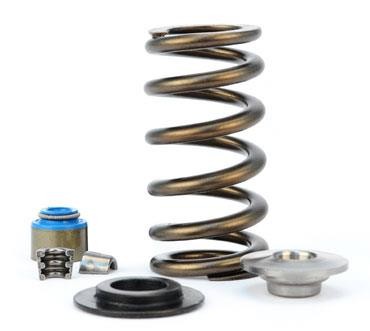

Please note the above image does not show full spring kit.

Features & benefits

• Designed for both 2011 - 2014 and 2015+ Ford Coyote and Boss 5.0L engines.
• higher RPM and more lift capacity than stock.
• Increased valve control at high RPM.
• Create higher load
• .510" Maximum Lift

Videos and guides

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).
