COMP Cams

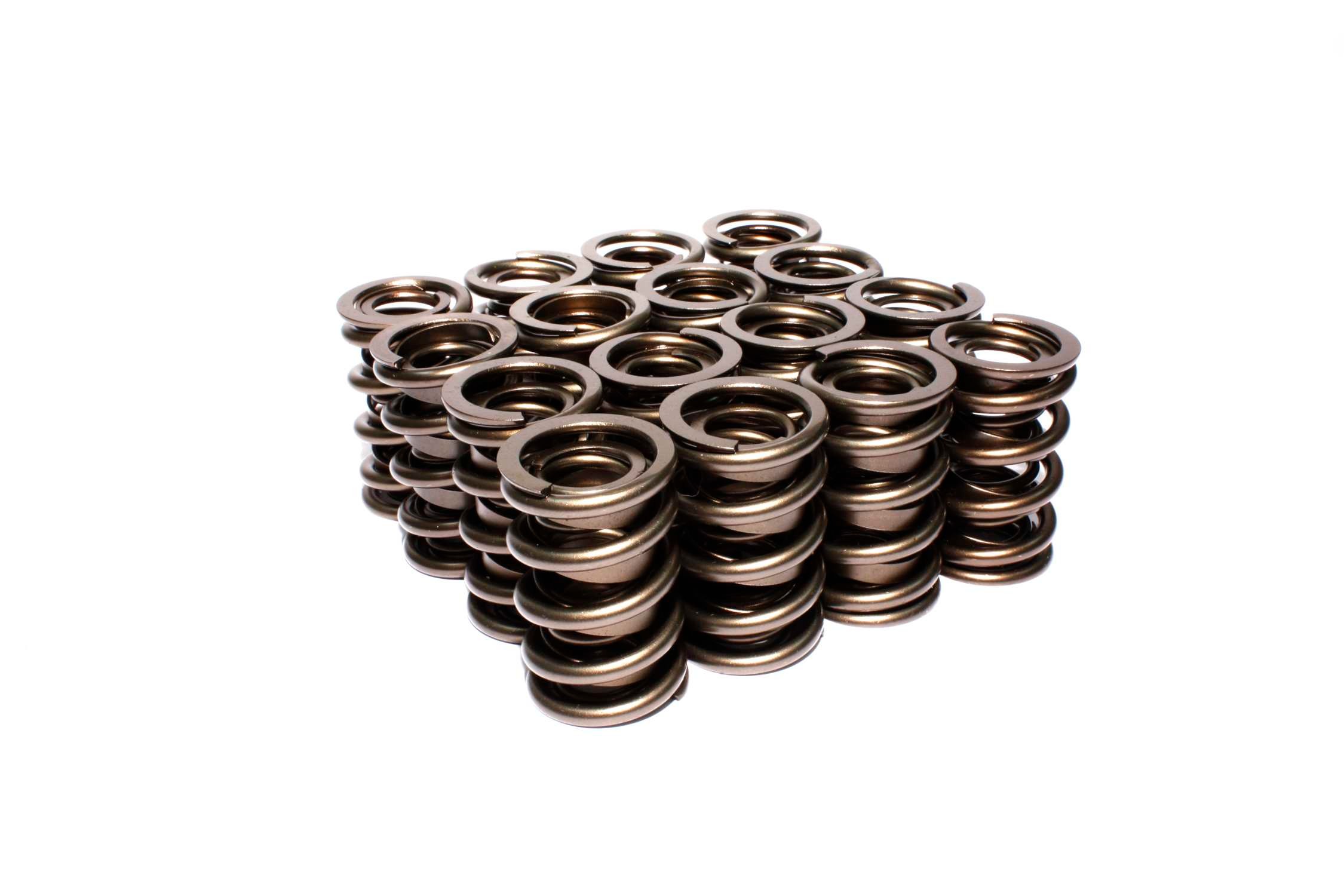

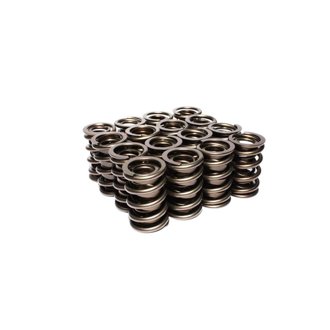

Dual Spring W/ Damper, 1.555 Od, 1.950 Ih, .760 Lift, 500 LBS/IN

Part Number 26094-16 (132703054)

Package contents: 1 Set per Box

Color

$406.61

In stockShips by 17th Nov

Description

COMP Cams' new 26094 dual valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire, they redefine reliability and consistency in the performance automotive aftermarket. The 26094 is geared towards aggressive solid roller cams with up to .760" lift and race-oriented solid flat tappet setups, with an installed height of 1.950”. They fit cylinder heads with at least a 1.555" spring pocket. Boasting an open load of over 520 pounds, these valve springs are designed for many aggressive street and race applications with exceptional performance and durability.Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the road or track with COMP Cams valve springs.

Specifications

Barcode	00036584061816
C.A.R.B. E.O. Number	N/A
C.A.R.B. Exempt For On-Road Vehicles?	Yes
C.A.R.B. Exemption Reason	No impact on pollution output of vehicle.
Compatible .570" Guide Diameter Spring Seats	4772-16
Compatible .630" Guide Diameter Spring Seats	4773-16
Compatible Retainer	780 Steel Retainers for 7° Locks and 3/8 Valves
Compatible Shims	4757
Compatible Spring Cup (O.D. Locator)	4700-16
Country Of Origin	USA
Damper	Yes
Dimensions	13.5" x 3.75" x 3"
ID Of Inner Spring (in)	.812 in
Inner Spring Inside Diameter	0.812 in
Load At Installed Height	150 ps
Load At Open Height (lbs)	526 p2
Maximum Coil Bind Height (in)	1.130 in
Number Of Springs Per Valve	2
Open Height	1.200 in
Outer Spring Inside Diameter	1.136 in
Outer Spring Outside Diameter	1.555 in
Quantity	16
Recommended Max Lift (in)	.760 in
Spring Rate	454 ppi
Spring Rate (lbs/in)	500 ppi
Street Legal	Yes
Valve Spring Finish	Raw
Valve Spring Style	Dual
Weight	6.1 lbs

Warranty

12 Months
