Beehive Valve Spring Kit 0.540in Lift for GM Vortec Hydraulic Rollers

Part Number 26918VCS-KIT (132836135)

UPC: 36584416654

Package contents: 1 Kit per Box

Color

$379.95 FREE SHIPPING

Out of stock

FREE SHIPPING

Description

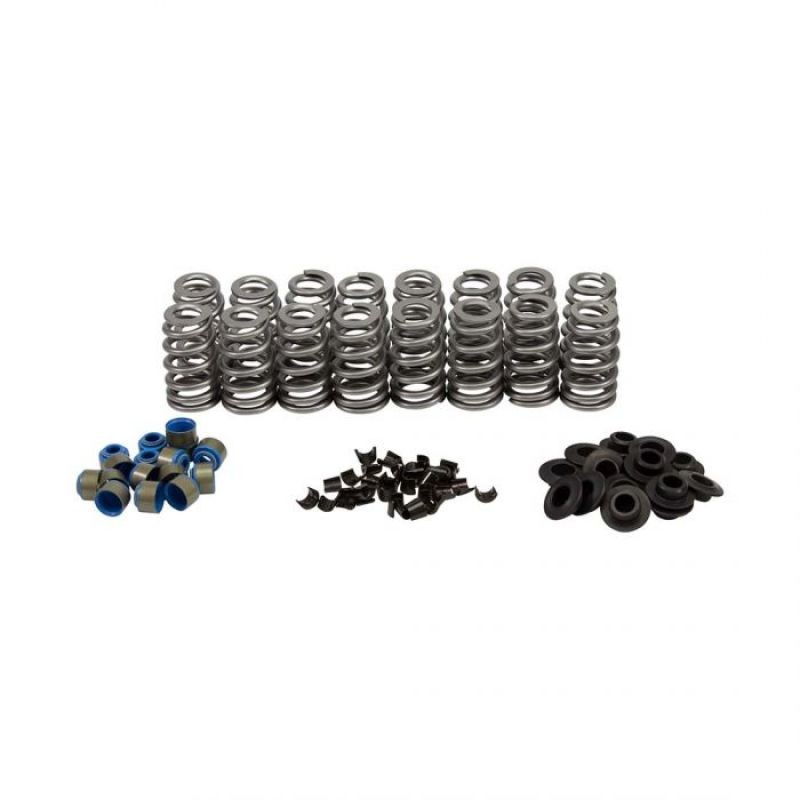

This COMP Cams Valve Spring Kit is designed to maximize the potential of GM L31 Vortec cylinder heads when using a hydraulic roller camshaft. This kit allows up to .540" lift and provides spring rates that can handle significantly more aggressive lobe profiles. This kit has been developed to make your valve train upgrade as easy as possible by combining quality components in a package that does not require any machining! These components will drop right onto stock GM L31 Vortec cylinder heads.

Features & benefits

Drop-in valve spring kit for GM L31 Vortec cylinder heads
No machining required
Includes metal body
Viton valve stem seals
.540" max lift

Specifications

Coil Bind Height	1.1 in
Country Of Origin	USA
Damper Spring Included	No
Inside Diameter Of Inner Spring (in)	N/A in
Inside Diameter Of Outer Spring (in)	.650/.875 in
Installed Height	1.7 in
Installed Height (in)	1.7 in
Installed Pressure	162 ps
Integrated Spring Seat	No
Load At Installed Height (lbs)	162
Load At Open Height (lbs)	363
Lock Style	7 Degree
Machine Work Required	No
Maximum Coil Bind Height (in)	1.1 in
Number Of Springs Per Valve	1
Open Height (in)	1.16 in
Open Pressure	372 ps
Outside Diameter Of Outer Spring (in)	1.066/1.300 in
Quantity	16
Recommended Max Lift (in)	0.54 in
Retainer Material	Chromoly
Spring Rate (lbs/in)	372
Spring Seat OD (in)	N/A
Spring Seat Step Diameter (in)	N/A
Spring Type	Dual Spring
Street Legal	Yes
Valve Spring Finish	Raw
Valve Spring Style	Beehive
Valve Stem Diameter (in)	11/32 in
Valve Stem Seal Material	Viton
Valve Stem Seal Type	Positive Stop

Warranty

12 Months
