NGK Authorized Dealer

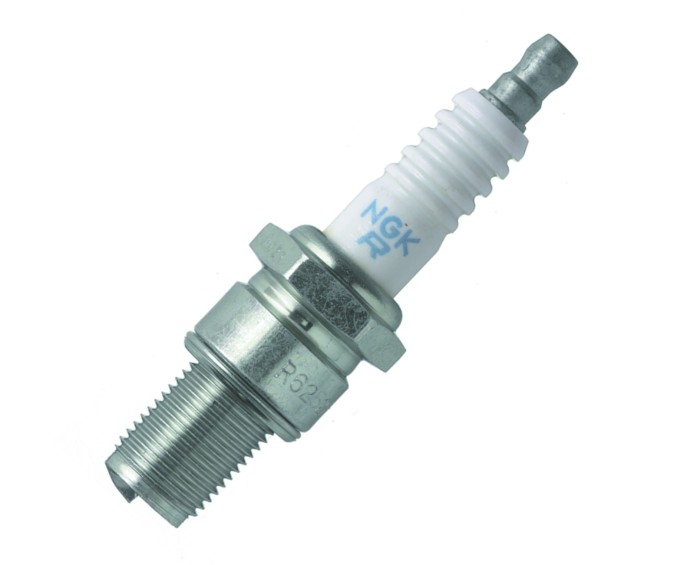

Racing Spark Plug

Part Number 4076 (132647929)
$7.10
In stockShips by 14th Oct

Description

NGK Racing spark plugs are designed with extreme use in mind and meant to withstand the most grueling racing conditions. NGK Spark Plugs have been powering racing champions and can be found in every racing venue throughout the world. The center electrode of the NGK Racing spark plugs has special configurations and designs to ensure durability and ignitability. NGK Racing plugs bring ultra high performance in a variety of heat ranges. Special configurations are used for a wide variety of racing applications.

Features & benefits

  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
  • Special insulator nose configurations improve throttle response
  • Corrugated ribs prevent flashover
  • Copper core aids in heat removal
  • Triple seals prevent leakage
  • DESIGNED FOR RACING: Low angle tip design built to withstand extreme heat and vibration
  • COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
  • NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • RECOMMENDED USAGE: Racing use only, featuring special configurations and designs to ensure durability and ignitability

Specifications

Center Electrode Core Material Copper
Center Electrode Design Fine Wire
Center Electrode Insulator Tip Projection 0.0
Center Electrode Projection Non-Projected
Center Electrode Tip Material Nickel
Electrical Terminal Type Non-Removable Nut
Grade Type Performance
Ground Configuration Slant
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Pin Type
Ground Electrode Tip Material Platinum
Hex Size 13/16"
Insulator Height 56.0
Insulator Material Ceramic
Manufacturer Heat Range 11
Metallurgy Single Platinum
Part Number R6254K-105
Pre-Gap Size 0.8
Reach 19.0
Resistance 0.0
Resistor Type No
Seat Type Flat
Service Number R6254K-105
Short Style Spark Plug No
Skirt No
Skirt Length 0.0
Stock Number 4076
Street Legal Yes
Thread Size M14 - 1.25
Thread Type Standard Metric
Washer Type Crush
Washer(s) Included Yes

Warranty

2 Months
