NGK Authorized Dealer

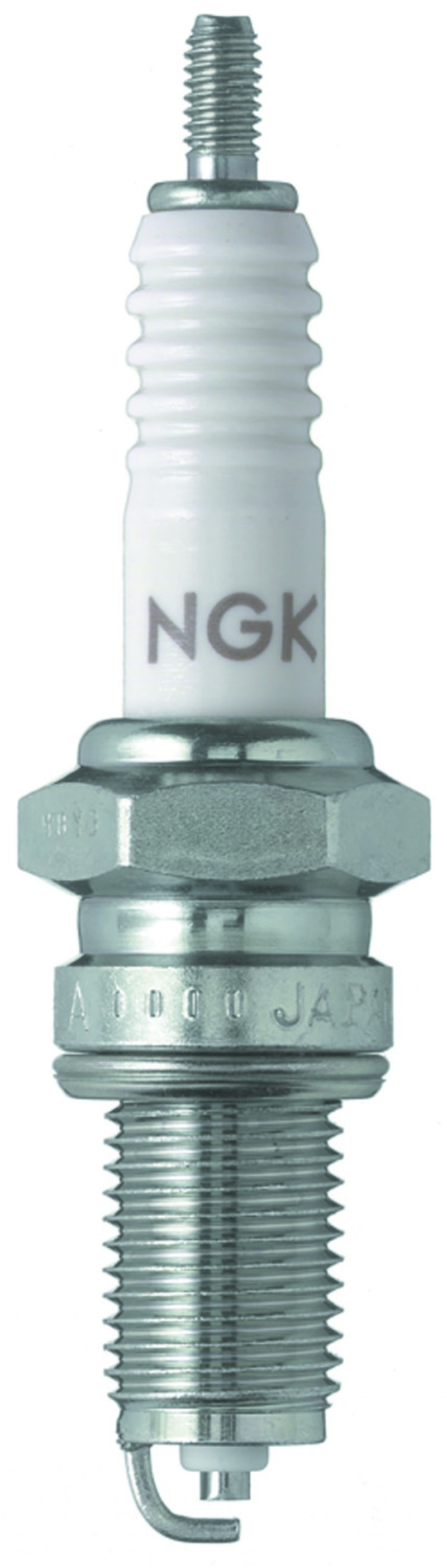

Standard Spark Plug (DP8EA-9

Part Number 5829 (132648523)
Package contents: 1 Each per Box
Select vehicle for guaranteed fit
Color
Tan
$3.12

In stockShips by 18th Nov

Description

NGK Standard spark plugs (in the iconic NGK 'yellow box' packaging) are a proven OE cornerstone and technology customers have relied on for decades. Engineered specifically for OE applications, NGK Standard spark plugs provide OE quality nickel alloy reliable performance and design. NGK's legendary high grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance, while triple gasket sealing prevents combustion gas leakage. Solid 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges. Trivalent metal plating ensures superior anti-corrosion and anti-seizing properties.

Fitment

This part fits the following vehicles.

Kawasaki

  • 1985-1986 KL600
  • 1990 KL650B Tengai
  • 1990 VN1500A Vulcan 88
  • 1990 VN1500B Vulcan 88 SE

Suzuki

  • 1987-1988 VS1400GL Intruder
  • 1985-1987 VS700 Intruder

Yamaha

  • 1984-1985 FJ1100
  • 1986-1993 FJ1200
  • 1987 FZ700
  • 1985-1988 FZ750
  • 1987-1995 FZR1000
  • 1987-1988 FZR750R
  • 1986-1987 FZX700 Fazer
  • 1986 SRX600
  • 1986 TT600
  • 1984-1993 XT600

Features & benefits

  • RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
  • COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
  • NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
  • Trivalent metal plating for superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Copper core aids in heat removal
  • Triple seals prevent leakage

Specifications

Barcode 00087295058299
Center Electrode Core Material Copper
Center Electrode Design Standard
Center Electrode Insulator Tip Projection 3.0 mm
Center Electrode Projection Mid Projection
Center Electrode Tip Material Nickel
Color Tan
Country Of Origin JP
Dimensions 4.7" x 3.9" x 2"
Electrical Terminal Type Stud
Grade Type Standard Replacement
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Standard
Ground Electrode Tip Material Nickel
Hex Size 18mm
Insulator Height 50.0 mm
Insulator Material Ceramic
Manufacturer Heat Range 8
Metallurgy Copper
Part Number DP8EA-9
Pre-Gap Size 0.9 mm
Reach 19.0 mm
Resistance 0.0 82
Resistor Type No
Seat Type Flat
Service Number DP8EA-9
Short Style Spark Plug No
Skirt No
Skirt Length 0.0 mm
Street Legal Yes
Thread Size M12 - 1.25
Thread Type Standard Metric
Washer Type Crush
Washer(s) Included Yes
Weight 1 lbs

Warranty

2 Months

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).

California residents

WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
