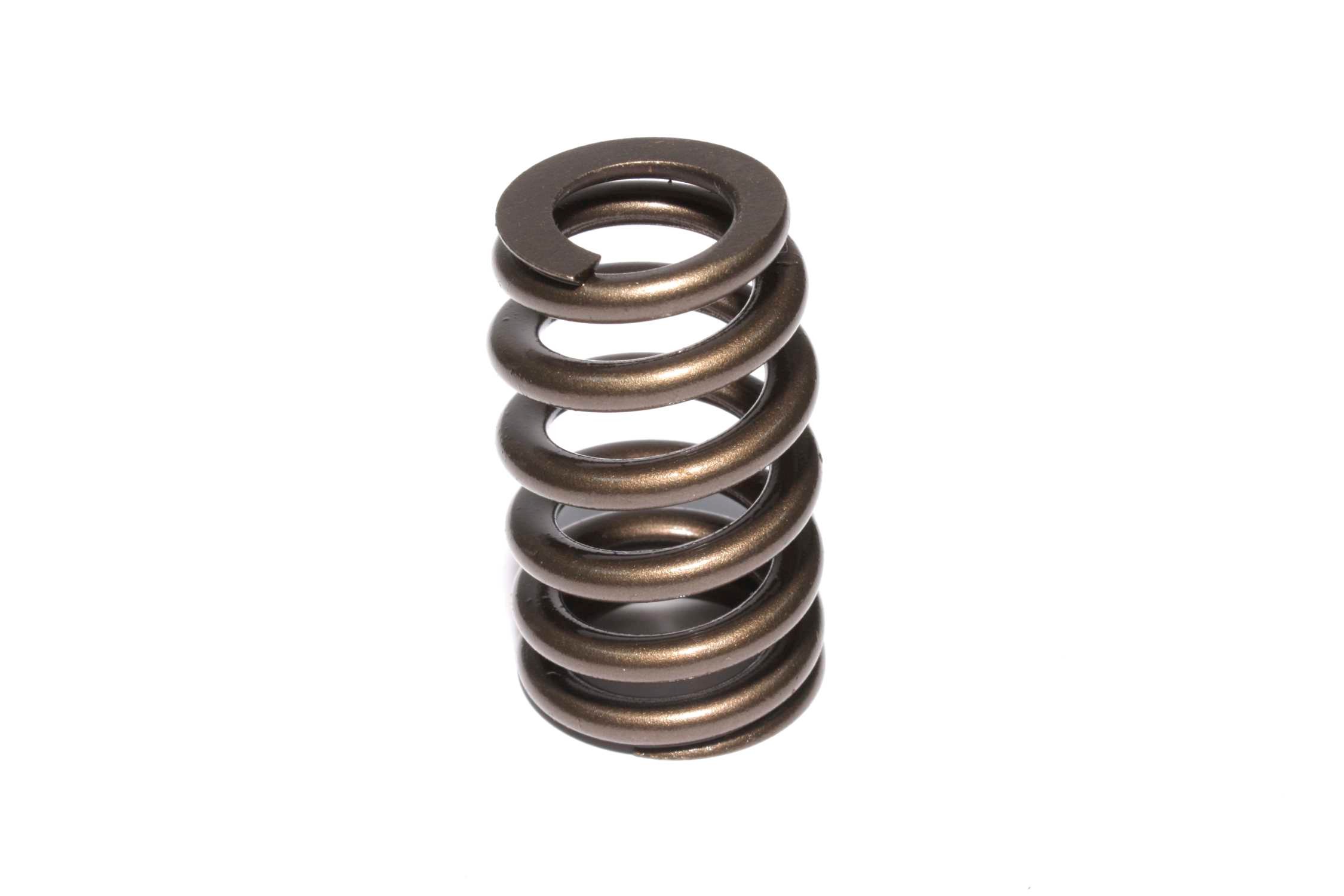

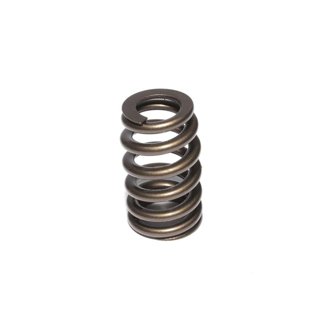

Beehive Valve Spring: Top 1.065" OD, .650" ID

Description

With a .525" maximum lift, these Beehive Valve Springs were designed for hydraulic or Solid flat tappet as well as hydraulic Roller cams. They work in most Small Block Chevy heads with no machining. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.

Part #
OD
ID
Seat Load
Open Load
Coil Bind
Rate (Lbs./In.)
Titanium Retainer
Steel Retainer
Cup Seat
Shims

26981
Top Bottom
1.0651.240
.650.825
110 @ 1.700
292 @ 1.175
1.115
347
788
1787, 787, 795
4693
4753

COMP Cams® is the leading American manufacturer of high-quality, performance-based internal engine components, including camshafts, valve springs, rocker arms, lifters, pushrods, and other valve train components. We help our customers with innovative technological advancements through extensive research and development. Our quality workmanship and engineering ensure confidence for racers and street performance enthusiasts. COMP Cams is a proud member of the Edelbrock Group family of brands, which include Edelbrock®, FAST® (Fuel Air Spark Technology), TCI® Automotive, Russell® Performance and Lunati Power®. Headquartered in Olive Branch, Mississippi, COMP Cams remains an innovative American company focused on results-driven technology and superior customer support. We believe in the automotive lifestyle and continue to support the passion for our American pastime. For more information about the Edelbrock Group or any partner brands, visit www.edelbrockgroup.com.

Fitment

This part fits the following vehicles.

• 1977-1980, 1982 Buick Century
• 1978 Buick LeSabre
• 1977-1980 Buick Regal
• 1977-1981 Buick Skylark
• 1968-1976 Cadillac Calais
• 1975-1979 Cadillac Commercial Chassis
• 1968-1979 Cadillac DeVille
• 1968-1978 Cadillac Eldorado
• 1968-1979 Cadillac Fleetwood
• 1955-1975 Chevrolet Bel Air
• 1958-1972 Chevrolet Biscayne
• 1969-1974 Chevrolet Blazer
• 1969-1972 Chevrolet Brookwood
• 1975-1986 Chevrolet C10
• 1961-1974 Chevrolet C10 Pickup
• 1968-1986 Chevrolet C10 Suburban
• 1975-1986 Chevrolet C20
• 1961-1974 Chevrolet C20 Pickup
• 1968-1986 Chevrolet C20 Suburban
• 1975-1986 Chevrolet C30
• 1961-1974 Chevrolet C30 Pickup
• 1967-1986 Chevrolet Camaro
• 1966-1986 Chevrolet Caprice
• 1964-1977 Chevrolet Chevelle
• 1962-1968 Chevrolet Chevy II
• 1980-1981 Chevrolet Citation
• 1955-1972, 1974-1982, 1984-1986 Chevrolet Corvette
• 1958 Chevrolet Del Ray
• 1959-1960, 1964-1986 Chevrolet El Camino
• 1975-1986 Chevrolet G10
• 1964-1974 Chevrolet G10 Van
• 1975-1986 Chevrolet G20
• 1967-1974 Chevrolet G20 Van
• 1975-1986 Chevrolet G30
• 1970-1974 Chevrolet G30 Van
• 1959-1985 Chevrolet Impala
• 1975-1986 Chevrolet K10
• 1961-1974 Chevrolet K10 Pickup
• 1968-1986 Chevrolet K10 Suburban
• 1975-1986 Chevrolet K20
• 1961-1974 Chevrolet K20 Pickup
• 1968-1986 Chevrolet K20 Suburban
• 1977-1986 Chevrolet K30
• 1968-1974 Chevrolet K30 Pickup
• 1975-1986 Chevrolet K5 Blazer
• 1969-1972 Chevrolet Kingswood
• 1978-1983 Chevrolet Malibu
• 1970-1986 Chevrolet Monte Carlo
• 1975-1979 Chevrolet Monza
• 1969-1979 Chevrolet Nova
• 1955-1957 Chevrolet One-Fifty Series
• 1961-1966 Chevrolet Suburban
• 1969-1972 Chevrolet Townsman
• 1955-1958, 1960 Chevrolet Truck
• 1955-1957 Chevrolet Two-Ten Series
• 1959 Fiat 1100
• 1975-1978 GMC C15
• 1979-1986 GMC C1500
• 1979-1986 GMC C1500 Suburban
• 1967-1974 GMC C15/C1500 Pickup
• 1968-1974 GMC C15/C1500 Suburban
• 1975-1978 GMC C15 Suburban
• 1975-1978 GMC C25
• 1979-1986 GMC C2500
• 1979-1986 GMC C2500 Suburban
• 1967-1974 GMC C25/C2500 Pickup
• 1968-1974 GMC C25/C2500 Suburban
• 1975-1978 GMC C25 Suburban
• 1975-1978 GMC C35
• 1979-1986 GMC C3500
• 1967-1974 GMC C35/C3500 Pickup
• 1978-1986 GMC Caballero
• 1975-1978 GMC G15
• 1979-1986 GMC G1500
• 1967-1974 GMC G15/G1500 Van
• 1975-1978 GMC G25
• 1979-1986 GMC G2500
• 1967-1974 GMC G25/G2500 Van
• 1975-1978 GMC G35
• 1979-1988 GMC G3500
• 1971-1974 GMC G35/G3500 Van
• 1970-1986 GMC Jimmy
• 1975-1978 GMC K15
• 1979-1986 GMC K1500
• 1979-1986 GMC K1500 Suburban
• 1967-1974 GMC K15/K1500 Pickup
• 1968-1974 GMC K15/K1500 Suburban
• 1975-1978 GMC K15 Suburban
• 1975-1978 GMC K25
• 1979-1986 GMC K2500
• 1979-1986 GMC K2500 Suburban
• 1967-1974 GMC K25/K2500 Pickup
• 1968-1974 GMC K25/K2500 Suburban
• 1975-1978 GMC K25 Suburban
• 1977-1978 GMC K35
• 1979-1986 GMC K3500
• 1968-1974 GMC K35/K3500 Pickup
• 1971-1977 GMC Sprint
• 1966 GMC Suburban
• 1977 Oldsmobile Custom Cruiser

Showing 100 of 120 vehicles. Use the fit check above to see whether this part fits yours.

Features & benefits

• Street to circle track, OEM to drag race performance, Melling valve springs cover the market and your requirements. Standard, mid-range, heavy-duty and race ready applications are available from Melling in a variety of wire sizes, materials and spring pressures. Melling spring designs include standard and dual springs with and without dampers as well as new beehive applications. Whatever your valve/rocker spring needs may be Melling has a variety of quality valve springs to fit your requirements.

Specifications

Warranty

12 Months
