COMP Cams

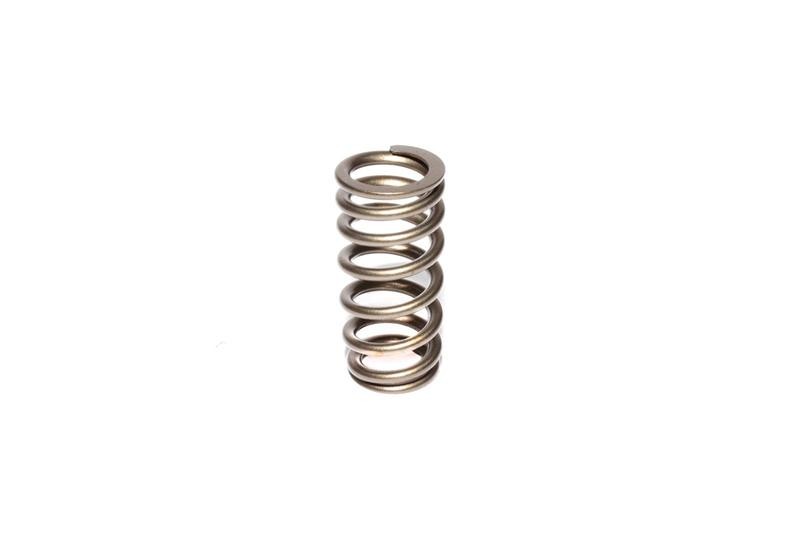

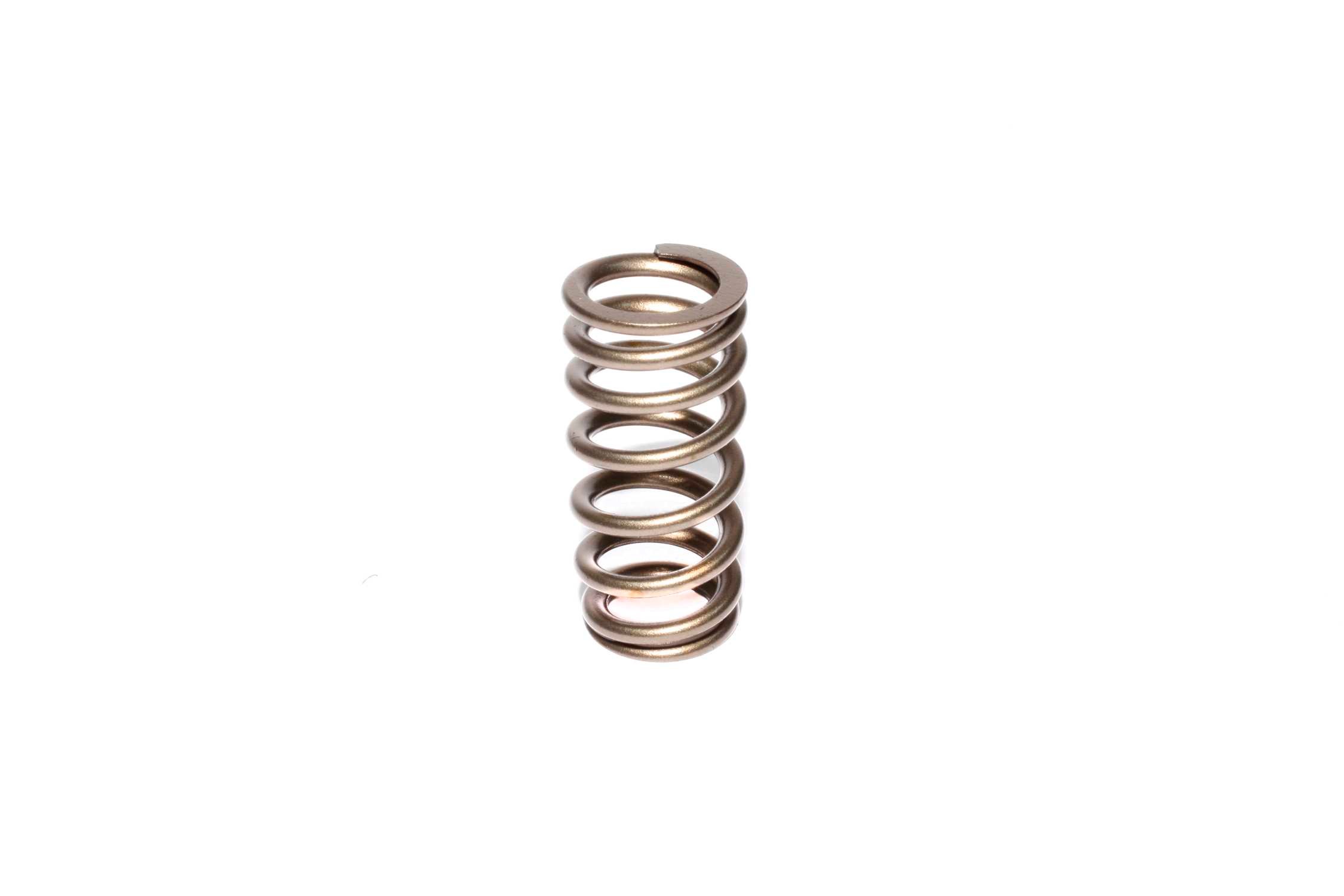

Beehive Valve Spring: Top .943" OD, .580" ID

Name: Beehive Valve Spring: Top .943" OD, .580" ID
Brand: COMP Cams
SKU: 132702972
Price: 33.95 USD
Availability: OutOfStock

Part Number 26123-1 (132702972)

Select vehicle for guaranteed fit

$33.95

Out of stock

Description

With a .500" maximum lift, these Beehive Valve Springs were designed for Ford 4.6L Modular 4 Valve engines. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.
Part #
OD
ID
Seat Load
Open Load
Coil Bind
Rate (Lbs./In.)
Titanium Retainer
Steel Retainer
Cup Seat
Shims
26123
Top Bottom
.9431.105
.580.742
90 @ 1.470
252 @ .970
.900
324
798
799
N/A
N/A

COMP Cams® is the leading American manufacturer of high-quality, performance-based internal engine components, including camshafts, valve springs, rocker arms, lifters, pushrods, and other valve train components. We help our customers with innovative technological advancements through extensive research and development. Our quality workmanship and engineering ensure confidence for racers and street performance enthusiasts. COMP Cams is a proud member of the Edelbrock Group family of brands, which include Edelbrock®, FAST® (Fuel Air Spark Technology), TCI® Automotive, Russell® Performance and Lunati Power®. Headquartered in Olive Branch, Mississippi, COMP Cams remains an innovative American company focused on results-driven technology and superior customer support. We believe in the automotive lifestyle and continue to support the passion for our American pastime. For more information about the Edelbrock Group or any partner brands, visit www.edelbrockgroup.com.

Fitment

This part fits the following vehicles.

1996-2001, 2003-2004 Ford Mustang
1995-2002 Lincoln Continental
1993-1998 Lincoln Mark VIII
2003-2004 Mercury Marauder

Features & benefits

Street to circle track, OEM to drag race performance, Melling valve springs cover the market and your requirements. Standard, mid-range, heavy-duty and race ready applications are available from Melling in a variety of wire sizes, materials and spring pressures. Melling spring designs include standard and dual springs with and without dampers as well as new beehive applications. Whatever your valve/rocker spring needs may be Melling has a variety of quality valve springs to fit your requirements.

Specifications

Amazon ASIN	B001GBVS3K
C.A.R.B. E.O. Number	N/A
C.A.R.B. Exempt For On-Road Vehicles?	Yes
C.A.R.B. Exemption Reason	No impact on pollution output of vehicle.
Coil Bind Height	0.9
Compatible Retainer	799-1
Country Of Origin	USA
Damper	No
Inside Diameter	0.742
Number Of Springs	1
Outer Bottom Spring Inside Diameter	0.742
Outer Bottom Spring Outside Diameter	1.105
Outer Top Spring Inside Diameter	0.58
Outer Top Spring Outside Diameter	0.943
Outside Diameter	1.105
Seat Height	1.47
Seat Pressure	89.52
Spring Rate	324
Street Legal	Yes
Valve Spring Series	Performance Street
