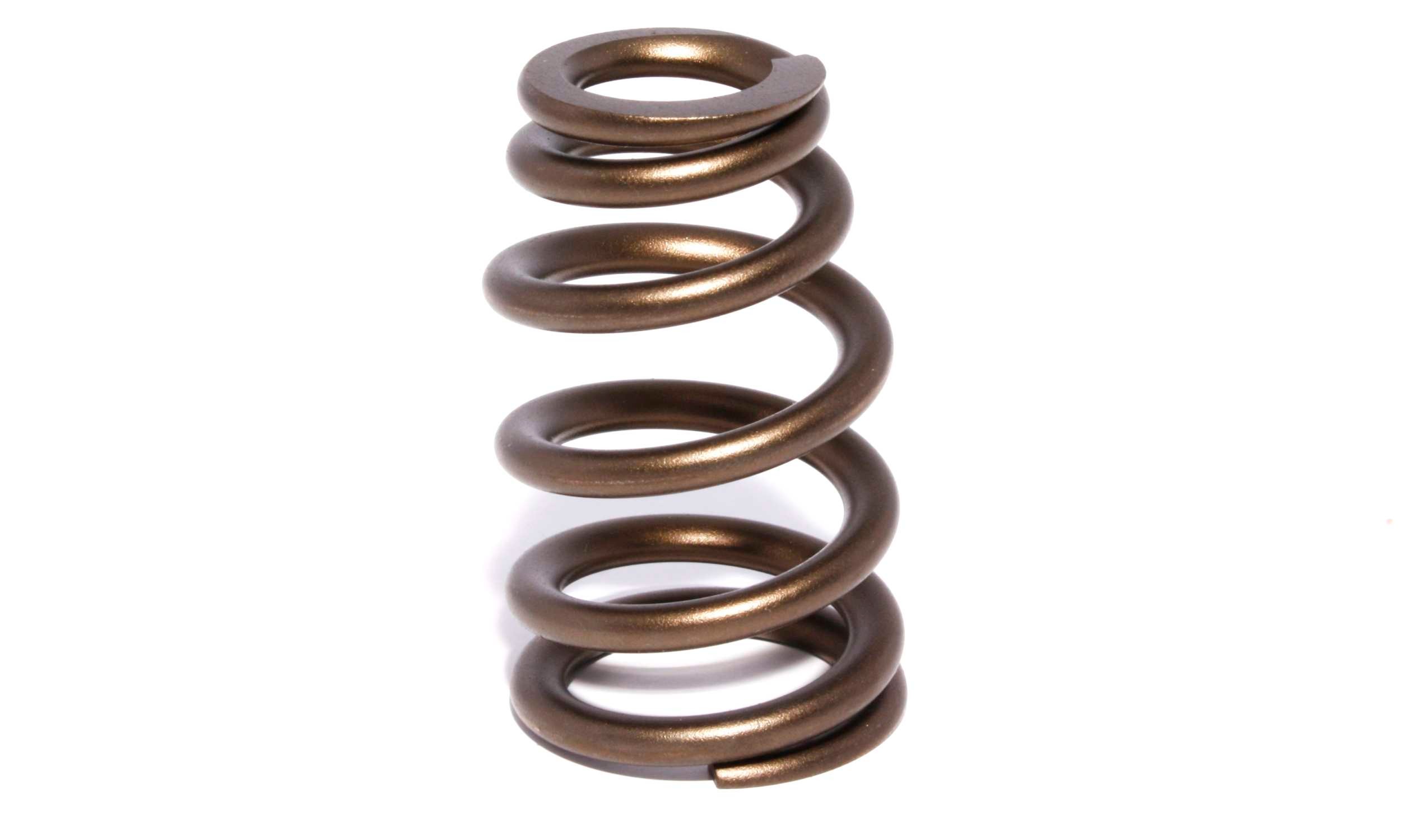

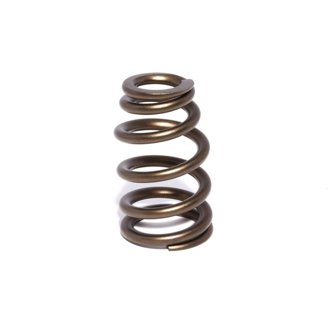

Race Street 1.590" OD Beehive Spring, 2.000" Installed Height, 1 Spring

Part Number 26095-1 (132702955)

Package contents: 1 Each per Box

$50.95 FREE SHIPPING

Out of stock

FREE SHIPPING

Description

With a .750" maximum lift, these Beehive Valve Springs are recommended for high lift Solid flat tappet and hydraulic Roller cams. They were designed for high performance street and track capabilities, and are used in Harley Davidson engines. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.
Part #
OD
ID
Seat Load
Open Load
Coil Bind
Rate (Lbs./In.)
Titanium Retainer
Steel Retainer
Cup Seat
Shims
26120
1.0951.445
.6501.000
155 @ 1.880
377 @ 1.280
1.230
370
794
795
4696, 4697, 4698
4754

Features & benefits

Street to circle track, OEM to drag race performance, Melling valve springs cover the market and your requirements. Standard, mid-range, heavy-duty and race ready applications are available from Melling in a variety of wire sizes, materials and spring pressures. Melling spring designs include standard and dual springs with and without dampers as well as new beehive applications. Whatever your valve/rocker spring needs may be Melling has a variety of quality valve springs to fit your requirements.

Specifications

Amazon ASIN	B001GBVQI2
Barcode	00036584073000
C.A.R.B. E.O. Number	N/A
C.A.R.B. Exempt For On-Road Vehicles?	Yes
C.A.R.B. Exemption Reason	No impact on pollution output of vehicle.
Coil Bind Height	1.13 in
Compatible .570" Guide Diameter Spring Seat	4711-1
Compatible Retainer	785-1
Compatible Shims	4757
Compatible Spring Cup (O.D. Locator)	4702-1
Country Of Origin	USA
Damper	No
Dimensions	6" x 4" x 2"
Inside Diameter	1.125 in
Number Of Springs	1
Outer Bottom Spring Inside Diameter	1.125 in
Outer Bottom Spring Outside Diameter	1.59 in
Outer Top Spring Inside Diameter	0.721 in
Outer Top Spring Outside Diameter	1.186 in
Outside Diameter	1.590 in
Seat Height	1.925 in
Seat Pressure	150 ps
Spring Rate	300 ppi
Street Legal	Yes
Valve Spring Series	Race/Street
Weight	0.39 lbs

Warranty

12 Months
