COMP Cams

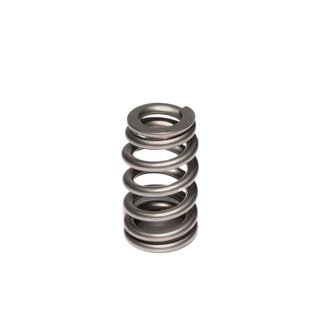

Performance Street 1.310" OD Beehive Spring, 1.800" Installed Height, 1 Spring

Part Number 26918-1 (132702999)

Package contents: 1 Each per Box

Select vehicle for guaranteed fit

$35.75

In stockShips by 17th Nov

Description

With a .625" maximum lift, these Beehive Valve Springs were designed for hydraulic Roller cams in LS1, LS2 and LS6 engines. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.
Part #
OD
ID
Seat Load
Open Load
Coil Bind
Rate (Lbs./In.)
Titanium Retainer
Steel Retainer
Cup Seat
Shims
26918
1.0751.310
.650.885
125 @ 1.800
367 @ 1.150
1.140
372
762, 772, 788
761, 774, 783, 787, 795
4705
4753

Features & benefits

Street to circle track, OEM to drag race performance, Melling valve springs cover the market and your requirements. Standard, mid-range, heavy-duty and race ready applications are available from Melling in a variety of wire sizes, materials and spring pressures. Melling spring designs include standard and dual springs with and without dampers as well as new beehive applications. Whatever your valve/rocker spring needs may be Melling has a variety of quality valve springs to fit your requirements.
Available in a set of 16 under 26918-16.

Specifications

Amazon ASIN	B0014F35MK
Barcode	00036584077459
C.A.R.B. E.O. Number	N/A
C.A.R.B. Exempt For On-Road Vehicles?	Yes
C.A.R.B. Exemption Reason	No impact on pollution output of vehicle.
Coil Bind Height	1.140 in
Compatible .570" Guide Diameter Spring Seat	4705-1
Compatible Retainer	795-1
Compatible Shims	4753
Compatible Spring Cup (O.D. Locator)	4709-1
Country Of Origin	USA
Damper	No
Dimensions	6" x 4" x 2"
Inside Diameter	0.885 in
Number Of Springs	1
Outer Bottom Spring Inside Diameter	0.885 in
Outer Bottom Spring Outside Diameter	1.31 in
Outer Top Spring Inside Diameter	0.65 in
Outer Top Spring Outside Diameter	1.075 in
Outside Diameter	1.310 in
Seat Height	1.8 in
Seat Pressure	125 ps
Spring Rate	372 ppi
Street Legal	Yes
Valve Spring Series	Performance Street
Weight	0.39 lbs

Warranty

12 Months
