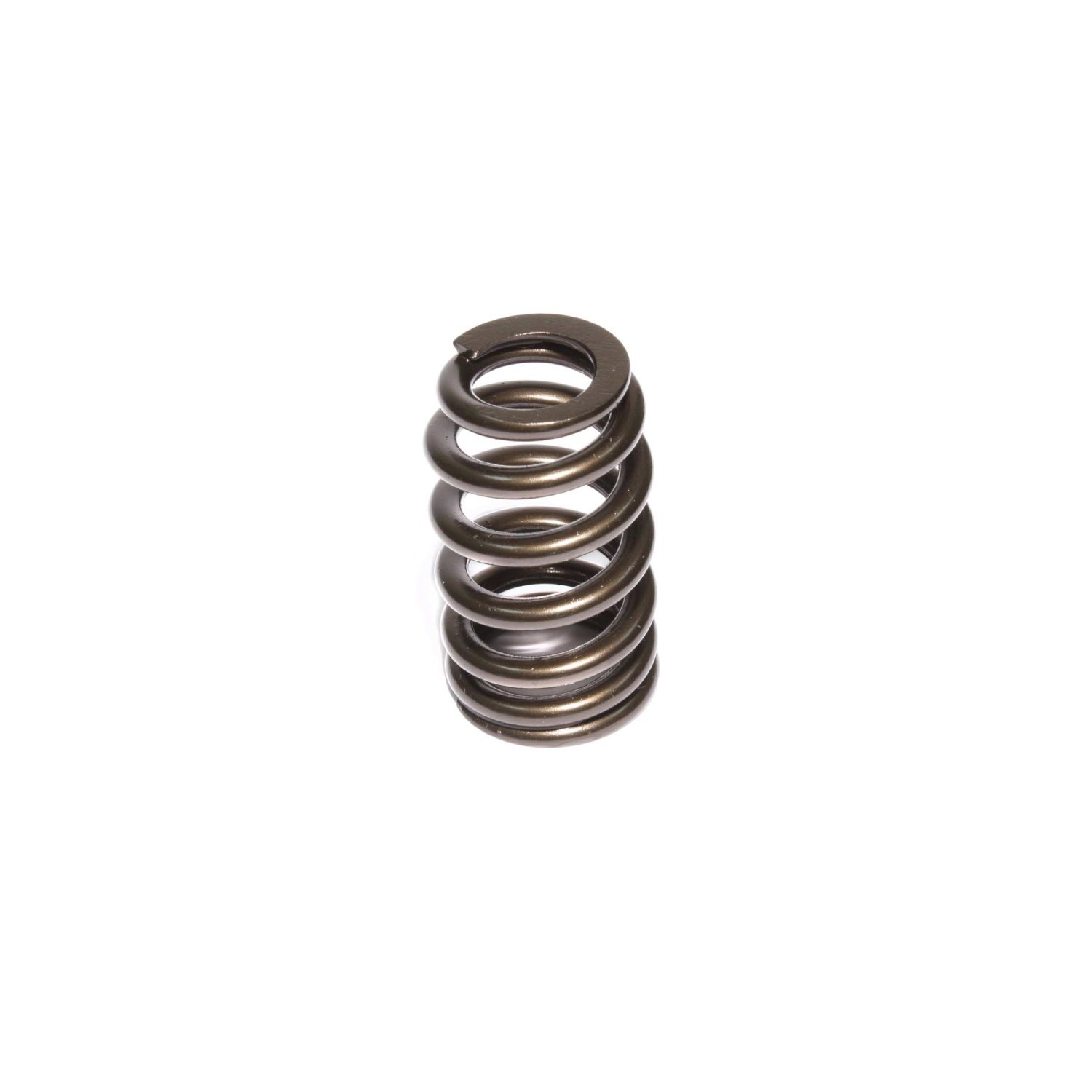

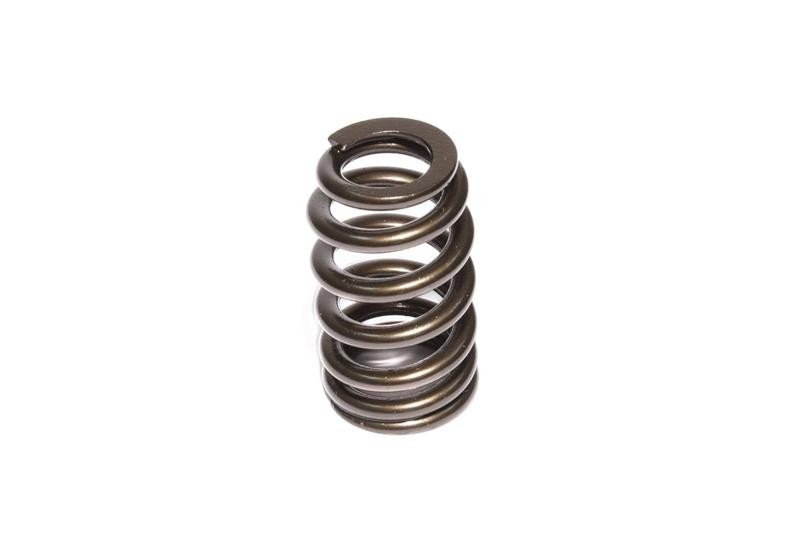

Beehive Valve Spring: Top 1.055" OD, .650" ID

Description

With a .600" maximum lift, these Beehive Valve Springs were designed for hydraulic Roller cams. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.
Part #
OD
ID
Seat Load
Open Load
Coil Bind
Rate (Lbs./In.)
Titanium Retainer
Steel Retainer
Cup Seat
Shims
26915
Top Bottom
1.0551.290
.650.885
105 @ 1.800
293 @ 1.200
1.100
313
762, 772, 788
761, 774, 783, 787, 795, 1787
4705
4753

COMP Cams® is the leading American manufacturer of high-quality, performance-based internal engine components, including camshafts, valve springs, rocker arms, lifters, pushrods, and other valve train components. We help our customers with innovative technological advancements through extensive research and development. Our quality workmanship and engineering ensure confidence for racers and street performance enthusiasts. COMP Cams is a proud member of the Edelbrock Group family of brands, which include Edelbrock®, FAST® (Fuel Air Spark Technology), TCI® Automotive, Russell® Performance and Lunati Power®. Headquartered in Olive Branch, Mississippi, COMP Cams remains an innovative American company focused on results-driven technology and superior customer support. We believe in the automotive lifestyle and continue to support the passion for our American pastime. For more information about the Edelbrock Group or any partner brands, visit www.edelbrockgroup.com.

Fitment

This part fits the following vehicles.

• 2004-2007 Cadillac CTS
• 1998-2002 Chevrolet Camaro
• 1997-2007 Chevrolet Corvette
• 2006-2007 Chevrolet Impala
• 2006-2007 Chevrolet Monte Carlo
• 2005-2006 Chevrolet SSR
• 2006 Chevrolet Trailblazer
• 1998-2002 Pontiac Firebird
• 2005-2007 Pontiac Grand Prix
• 2004-2006 Pontiac GTO

Features & benefits

• Street to circle track, OEM to drag race performance, Melling valve springs cover the market and your requirements. Standard, mid-range, heavy-duty and race ready applications are available from Melling in a variety of wire sizes, materials and spring pressures. Melling spring designs include standard and dual springs with and without dampers as well as new beehive applications. Whatever your valve/rocker spring needs may be Melling has a variety of quality valve springs to fit your requirements.

Specifications

Warranty

12 Months
