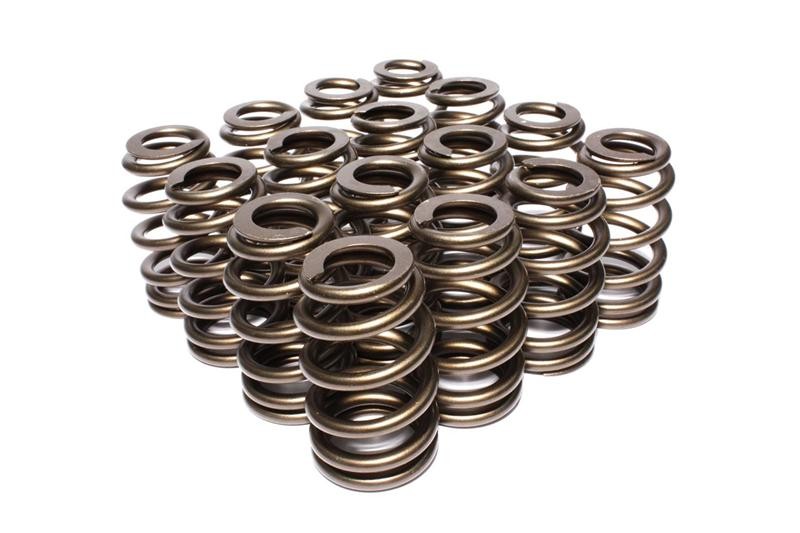

Race Street 1.590" OD Beehive Springs, 2.000" Installed Height, 16 Springs

Part Number 26095-16 (132702956)

UPC: 36584073017

Package contents: 1 Set per Box

Color

$512.95 FREE SHIPPING

In stockShips by 13th Nov

FREE SHIPPING

Description

With a .750" maximum lift, these Beehive Valve Springs are recommended for high lift Solid flat tappet and hydraulic Roller cams. They were designed for high performance street and track capabilities, and are used in Harley Davidson engines. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.
Part #
OD
ID
Seat Load
Open Load
Coil Bind
Rate (Lbs./In.)
Titanium Retainer
Steel Retainer
Cup Seat
Shims
26120
1.0951.445
.6501.000
155 @ 1.880
377 @ 1.280
1.230
370
794
795
4696, 4697, 4698
4754

Specifications

Amazon ASIN	B001NNJONW
C.A.R.B. E.O. Number	N/A
C.A.R.B. Exempt For On-Road Vehicles?	Yes
C.A.R.B. Exemption Reason	No impact on pollution output of vehicle.
Coil Bind Height	1.13 in
Compatible .570" Guide Diameter Spring Seats	4711-16
Compatible Retainer	785-16
Compatible Shims	4757
Compatible Spring Cup (O.D. Locator)	4702-16
Country Of Origin	USA
Damper	No
Number Of Springs	1
Outer Bottom Spring Inside Diameter	1.125 in
Outer Bottom Spring Outside Diameter	1.59 in
Outer Top Spring Inside Diameter	0.721 in
Outer Top Spring Outside Diameter	1.186 in
Seat Height	1.925 in
Seat Pressure	150 ps
Spring Rate	300 ppi
Street Legal	Yes
Valve Spring Series	Race/Street

Warranty

12 Months
