NGK Authorized Dealer

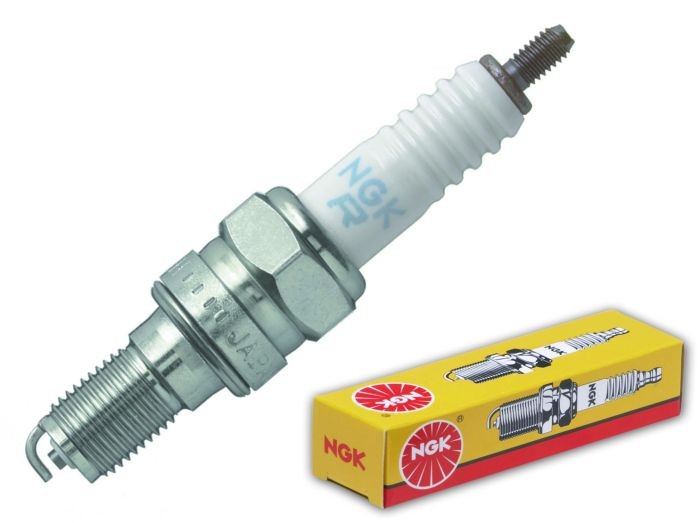

Standard Spark Plug (CR9EH-9

Part Number 7502 (132648737)
Package contents: 1 Each per Box
Select vehicle for guaranteed fit
Color
Tan
$5.61

In stockShips by 19th Nov

Description

NGK Standard spark plugs (in the iconic NGK 'yellow box' packaging) are a proven OE cornerstone and technology customers have relied on for decades. Engineered specifically for OE applications, NGK Standard spark plugs provide OE quality nickel alloy reliable performance and design. NGK's legendary high grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance, while triple gasket sealing prevents combustion gas leakage. Solid 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges. Trivalent metal plating ensures superior anti-corrosion and anti-seizing properties.

Fitment

This part fits the following vehicles.

Honda

  • 2004, 2006 CB600F 599
  • 2018 CB650F
  • 1991-1994 CBR600F F2
  • 1995-1998 CBR600F F3
  • 1999-2000 CBR600F F4
  • 2014-2016, 2018 CBR650F
  • 2015-2016 CBR650F ABS
  • 2020 CRF150R
  • 2020 CRF150R Expert
  • 2010 NHX110 Elite
  • 1988-1990 NX250

Features & benefits

  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
  • RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
  • COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
  • Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
  • Trivalent metal plating for superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Copper core aids in heat removal
  • Triple seals prevent leakage

Specifications

Barcode 00087295075029
Center Electrode Core Material Copper
Center Electrode Design Standard
Center Electrode Insulator Tip Projection 1.65 mm
Center Electrode Projection Non-Projected
Center Electrode Tip Material Nickel
Color Tan
Country Of Origin JP
Dimensions 4.4" x 3.3" x 1.8"
Electrical Terminal Type Stud
Grade Type Standard Replacement
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Standard
Ground Electrode Tip Material Nickel
Hex Size 5/8" (16mm)
Insulator Height 48.9 mm
Insulator Material Ceramic
Manufacturer Heat Range 9
Metallurgy Copper
Part Number CR9EH-9
Pre-Gap Size 0.9 mm
Reach 19.0 mm
Resistance 5000.0 82
Resistor Type Yes
Seat Type Flat
Service Number CR9EH-9
Short Style Spark Plug No
Skirt No
Skirt Length 0.0 mm
Street Legal Yes
Thread Size M10 - 1.0
Thread Type Standard Metric
Washer Type Crush
Washer(s) Included Yes
Weight 0.8 lbs

Warranty

2 Months

California residents

WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
