NGK Authorized Dealer

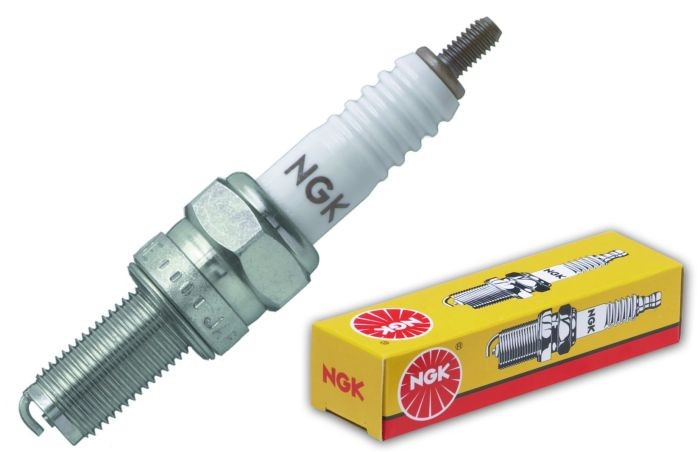

OE Series Standard Nickel Spark Plug: Conventional Tip, CR6E

Part Number 6965 (132648591)

UPC: 87295069653

Package contents: 1 Each

Select vehicle for guaranteed fit

$3.32

In stockShips by 29th Oct

Description

NGK Standard spark plugs (in the iconic NGK 'yellow box' packaging) are a proven OE cornerstone and technology customers have relied on for decades. Engineered specifically for OE applications, NGK Standard spark plugs provide OE quality nickel alloy reliable performance and design. NGK's legendary high grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance, while triple gasket sealing prevents combustion gas leakage. Solid 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges. Trivalent metal plating ensures superior anti-corrosion and anti-seizing properties.

Fitment

This part fits the following vehicles.

2002 375 Arctic Cat Auto 2x4
2002 375 Arctic Cat Auto 4x4
2002 400 Arctic Cat 2x4 FIS
2000-2009 500 Arctic Cat 4x4 Auto
2002 500 Arctic Cat 4x4 Auto FIS
2007-2008 700 Arctic Cat EFI 4x4 Auto
2007 700 Arctic Cat EFI 4x4 Auto LE
2008 700 Arctic Cat EFI 4x4 Auto M4
2006 700 Arctic Cat EFI 4x4 Auto SE
2017, 2020 Arctic Cat Prowler 500
2007-2010 Suzuki LT-A450X KingQuad AXi 4x4
2000-2001 Suzuki LT-A500F QuadMaster
2002-2007 Suzuki LT-A500F Vinson 500 4x4 Auto
2011-2014 Suzuki LT-A500 KingQuad AXi
2009, 2011-2014 Suzuki LT-A500 KingQuad AXi Power Steering
2005-2007 Suzuki LT-A700X KingQuad 4x4
2011-2013 Suzuki LT-A750X KingQuad AXi 4x4
2009, 2013 Suzuki M90 Boulevard
2018 Textron Prowler 500

Features & benefits

TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
Trivalent metal plating for superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent flashover
Copper core aids in heat removal
Triple seals prevent leakage
NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads

Specifications

Center Electrode Core Material	Copper
Center Electrode Design	Standard
Center Electrode Insulator Tip Projection	0.5 mm
Center Electrode Projection	Non-Projected
Center Electrode Tip Material	Nickel
Color	Nickel
Country Of Origin	TH
Electrical Terminal Type	Stud
Grade Type	Standard Replacement
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Ground Electrode Quantity	1
Ground Electrode Tip Design	Standard
Ground Electrode Tip Material	Nickel
Hex Size	5/8" (16mm)
Insulator Height	48.8 mm
Insulator Material	Ceramic
Manufacturer Heat Range	6
Metallurgy	Copper
Part Number	CR6E
Pre-Gap Size	0.8 mm
Reach	19.0 mm
Resistance	5000.0 82
Resistor Type	Yes
Seat Type	Flat
Service Number	CR6E
Short Style Spark Plug	No
Skirt	No
Skirt Length	0.0 mm
Street Legal	Yes
Thread Size	M10 - 1.0
Thread Type Standard	Metric
Washer Type	Crush
Washer(s) Included	Yes

Warranty

2 Months

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).

California residents

WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
