Standard Spark Plug Box of 4 (CR8EB

Part Number 7784 (132648762)
Package contents: 1 Each per Box
Select vehicle for guaranteed fit
Color
Tan
$7.76

In stockShips by 18th Nov

Description

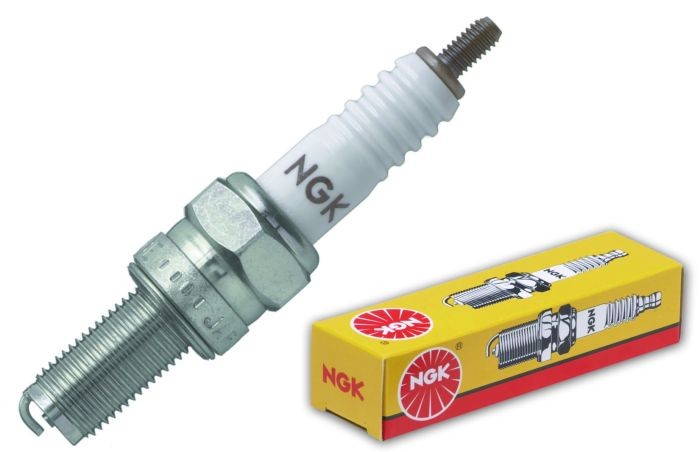

NGK Standard spark plugs (in the iconic NGK 'yellow box' packaging) are a proven OE cornerstone and technology customers have relied on for decades. Engineered specifically for OE applications, NGK Standard spark plugs provide OE quality nickel alloy reliable performance and design. NGK's legendary high grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance, while triple gasket sealing prevents combustion gas leakage. Solid 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges. Trivalent metal plating ensures superior anti-corrosion and anti-seizing properties.

Fitment

This part fits the following vehicles.

Aprilia

  • 2003-2006 Scarabeo 125
  • 2008, 2010-2011 Scarabeo 200
  • 2006 Scarabeo 250
  • 2009-2010 Sportcity 50

Can-Am

  • 2019 Ryker 600 ACE
  • 2019 Ryker 900 ACE
  • 2019 Ryker Rally Edition

Husqvarna

  • 2010-2011 SM 630
  • 2009-2010 SMR 450
  • 2005, 2009 SMR 510
  • 2011 SMS 630
  • 2002-2005 TC250
  • 2002-2005, 2009-2011 TC450
  • 2004-2005, 2009 TC510
  • 2002-2005 TE250
  • 2009-2011 TE310
  • 2004-2005, 2009-2011 TE450
  • 2004-2005, 2009-2010 TE510
  • 2010-2011 TE630
  • 2009 TXC 250
  • 2009-2010 TXC 450
  • 2009-2010 TXC 510

Kawasaki

  • 2004-2006 KX250F

Piaggio

  • 2016 Fly 150

Suzuki

  • 2005-2006 RMZ250

Vespa

  • 2013-2014 946
  • 2001-2005 ET2
  • 2001-2005 ET4
  • 2008 GT200
  • 2004-2007 GT 200 Granturismo
  • 2009 GTS 250
  • 2009 GTS 300 Super
  • 2009 GTV 250
  • 2009 LX 150
  • 2006, 2008-2009 LX 50
  • 2009 LXV 150
  • 2009 S 150
  • 2015-2017 Sprint 150

Features & benefits

  • COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
  • NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
  • RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
  • Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
  • Trivalent metal plating for superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Copper core aids in heat removal
  • Triple seals prevent leakage

Specifications

Barcode 00087295077849
Center Electrode Core Material Copper
Center Electrode Design Standard
Center Electrode Insulator Tip Projection 0.5 mm
Center Electrode Projection Non-Projected
Center Electrode Tip Material Nickel
Color Tan
Country Of Origin JP
Dimensions 4.4" x 3.3" x 1.8"
Electrical Terminal Type Non-Removable Nut
Grade Type Standard Replacement
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Standard
Ground Electrode Tip Material Nickel
Hex Size 5/8" (16mm)
Insulator Height 50.8 mm
Insulator Material Ceramic
Manufacturer Heat Range 8
Metallurgy Copper
Part Number CR8EB
Pre-Gap Size 0.8 mm
Reach 19.0 mm
Resistance 5000.0 82
Resistor Type Yes
Seat Type Flat
Service Number CR8EB
Short Style Spark Plug No
Skirt No
Skirt Length 0.0 mm
Street Legal Yes
Thread Size M10 - 1.0
Thread Type Standard Metric
Washer Type Crush
Washer(s) Included Yes
Weight 0.4916 lbs

Warranty

2 Months
